Tyvek / Tyvek® 400 Dual

TDCHF5SWH00

Tyvek® 400 Dual

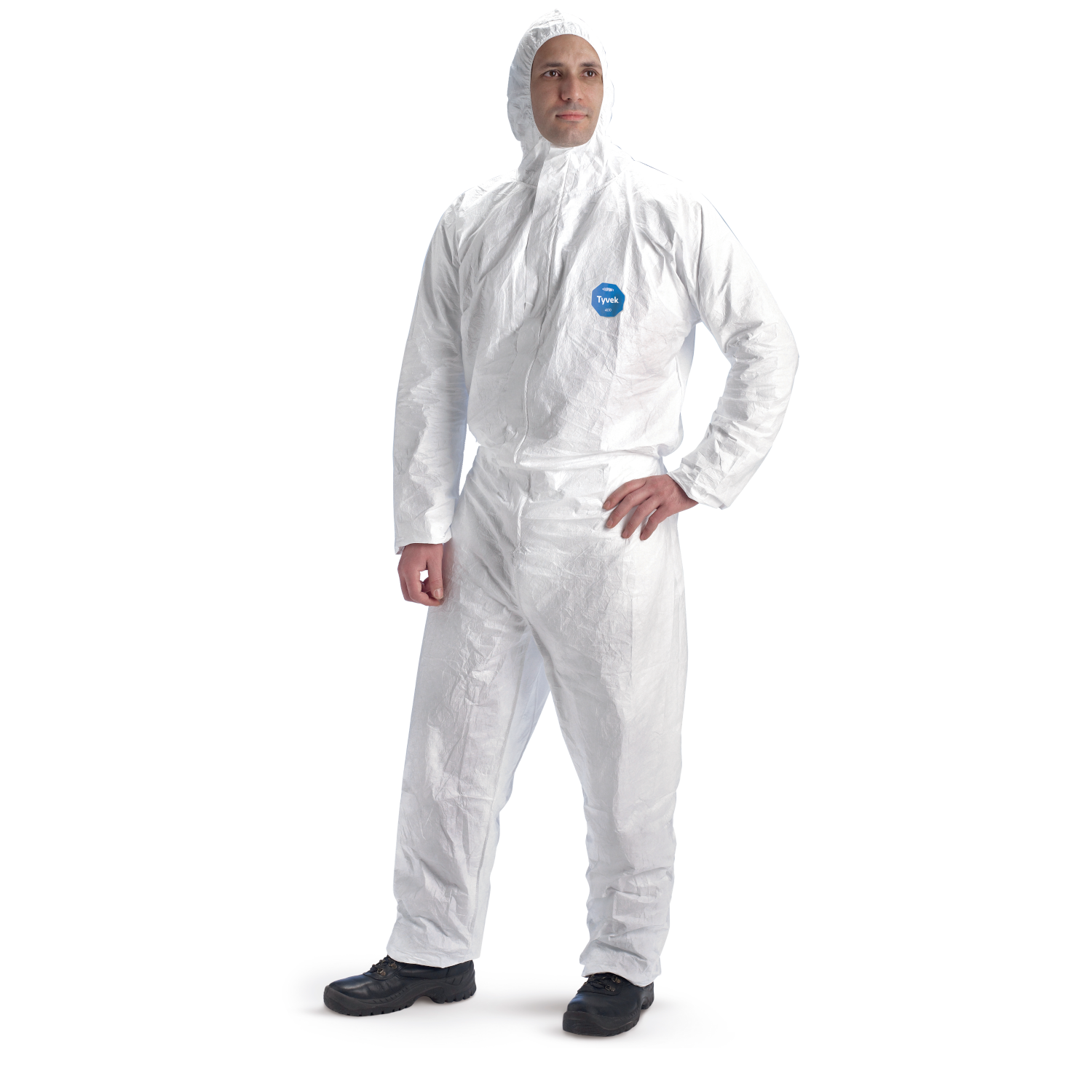

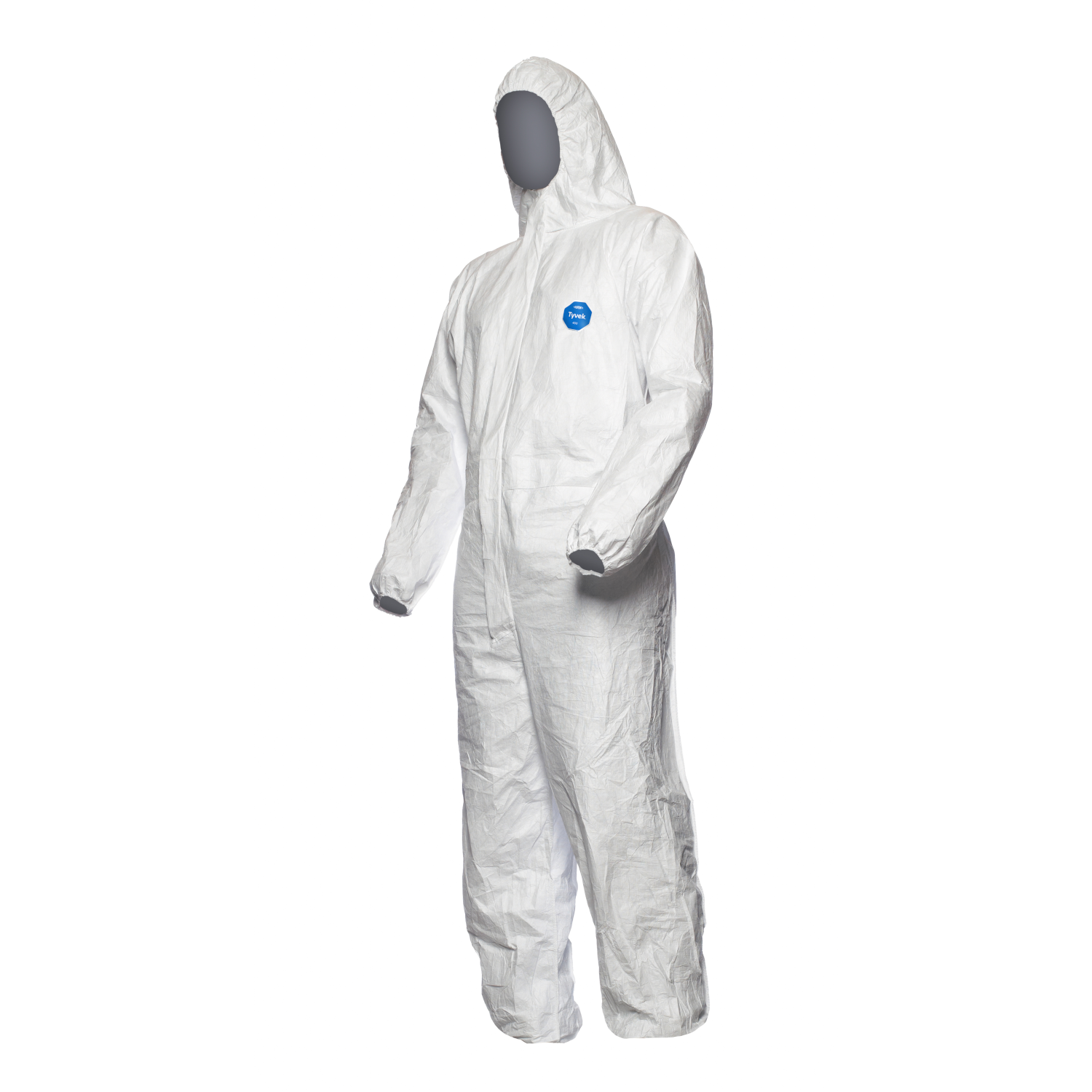

DuPont™ Tyvek® 400 Dual. Hooded coverall. Tyvek® at the front and large breathable SMS back. Stitched external seams. Elasticated wrists, ankles and face. Elasticated waist (stitched-in). Tyvek® zipper and flap. White.




Hover over image to zoom

CAT III

T5

T6

EN 1073-2

EN 1149-5

Name Description
Full Part Number TDCHF5SWH00
Fabric/Materials Tyvek® 500 / SMS
Design Hooded coverall with elastics, Tyvek® front, SMS back
Seam Stitched (external)
Color White
Sizes SM, MD, LG, XL, 2X, 3X
Quantity/Box 100 per box, individually packed.

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® 400 Dual. Hooded coverall combining Tyvek® with an SMS nonwoven back panel. Available in white in sizes SM to 3X. 3-piece hood and gusset for optimal fit. Elasticated face, wrists, waist and ankles.
The Tyvek® Dual garment combines Tyvek® on the front with an SMS nonwoven on the back panel. The Tyvek® front provides an ideal balance of protection, durability and comfort. It is permeable to both air and water vapour, yet repels water-based liquids and aerosols. It offers an excellent barrier against fine particles and fibres down to 1 micron in size. It is ultra-low-linting and antistatically treated. Silicon non-added. The large, breathable back panel, made of SMS nonwoven, offers lower protection against particles (down to 3 microns in size) and light water-based splashes, yet high levels of comfort.
Tyvek® 400 Dual is designed for specific applications that demand comfort while helping to provide protection from frontal exposure during brick ceramic firing, foundries and smelting operations, paint spraying or any work involving composite materials, glass manufacturing, and utilities.

  • Certified according to Regulation (EU) 2016/425
  • Chemical protective clothing, Category III, Type 5 and 6
  • Antistatic treatment (EN 1149-5) - on inside
  • Stitched external seams for enhanced protection against penetration from the outside to the inside of the garment
  • Tyvek® zipper and zipper flap for enhanced protection

ADDITIONAL EQUIPMENT NEEDED

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2/6 1
Basis Weight DIN EN ISO 536 41.5/43 g/m2 5 N/A
Colour N/A White N/A
Exposure to high Temperature N/A Melting point ~135 °C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6/6 1
Flex Cracking Resistance at -30°C EN ISO 7854 Method B >4000 cycles N/A
Puncture Resistance EN 863 >5 N 1/6 1
Resistance to water penetration DIN EN 20811 >10/3 kPa 5 N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >30 N 1/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >30 N 1/6 1
Thickness DIN EN ISO 534 140/- µm 5 N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

CLEANLINESS
