Tyvek / Tyvek® 500 Industry

TYCCF5SWH00

Tyvek® 500 Industry

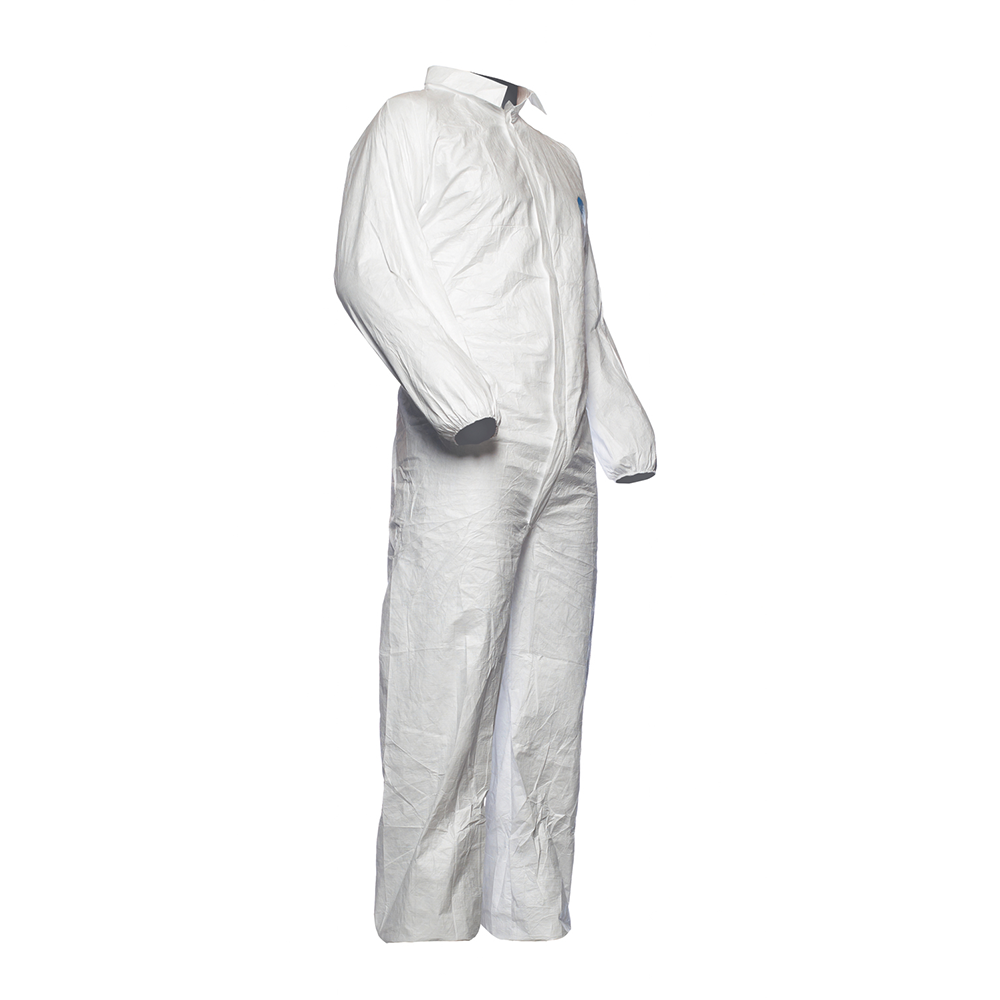

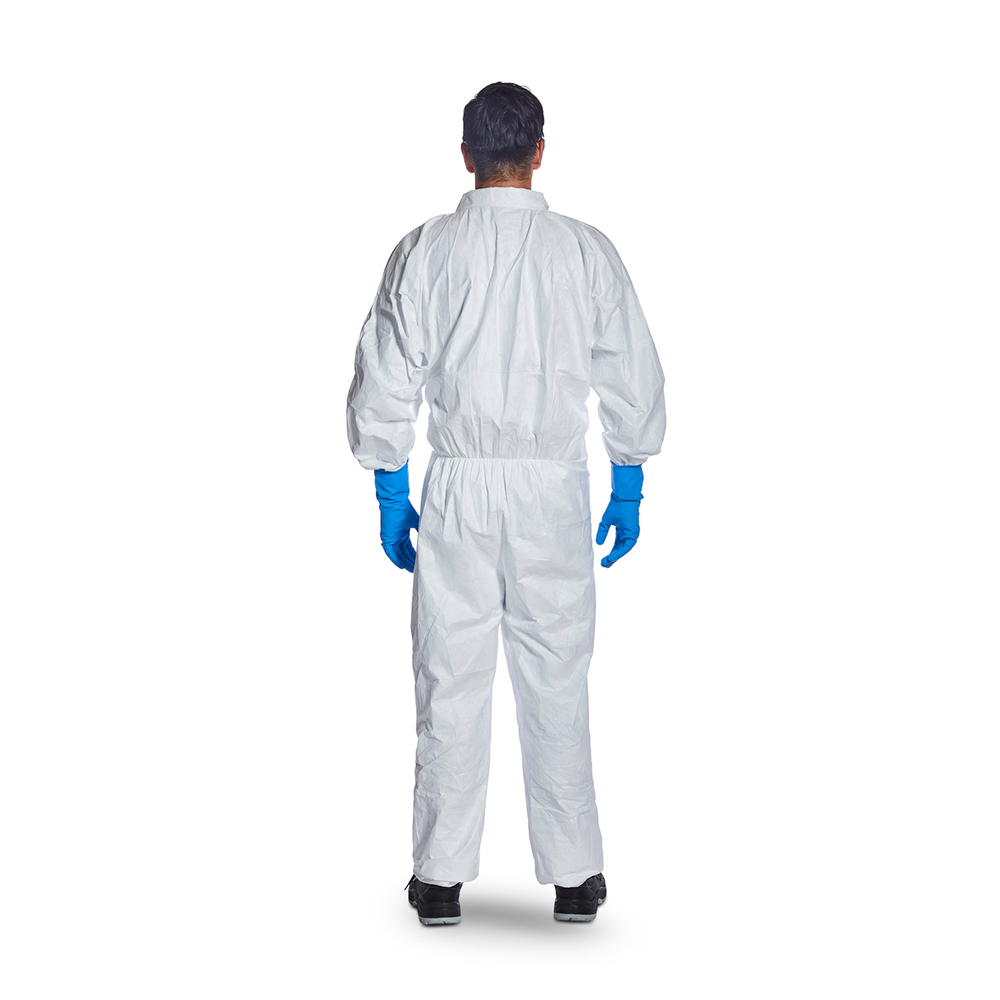

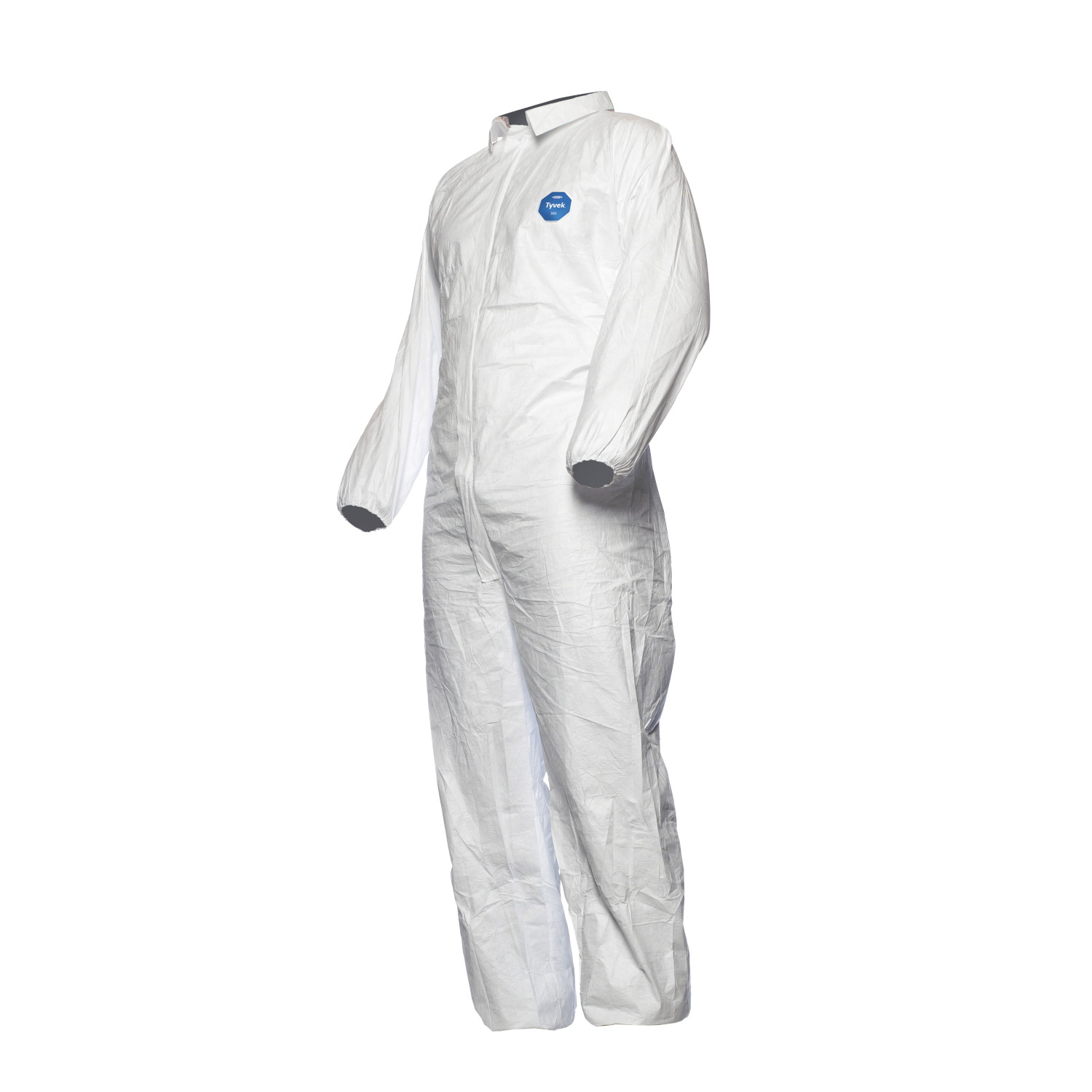

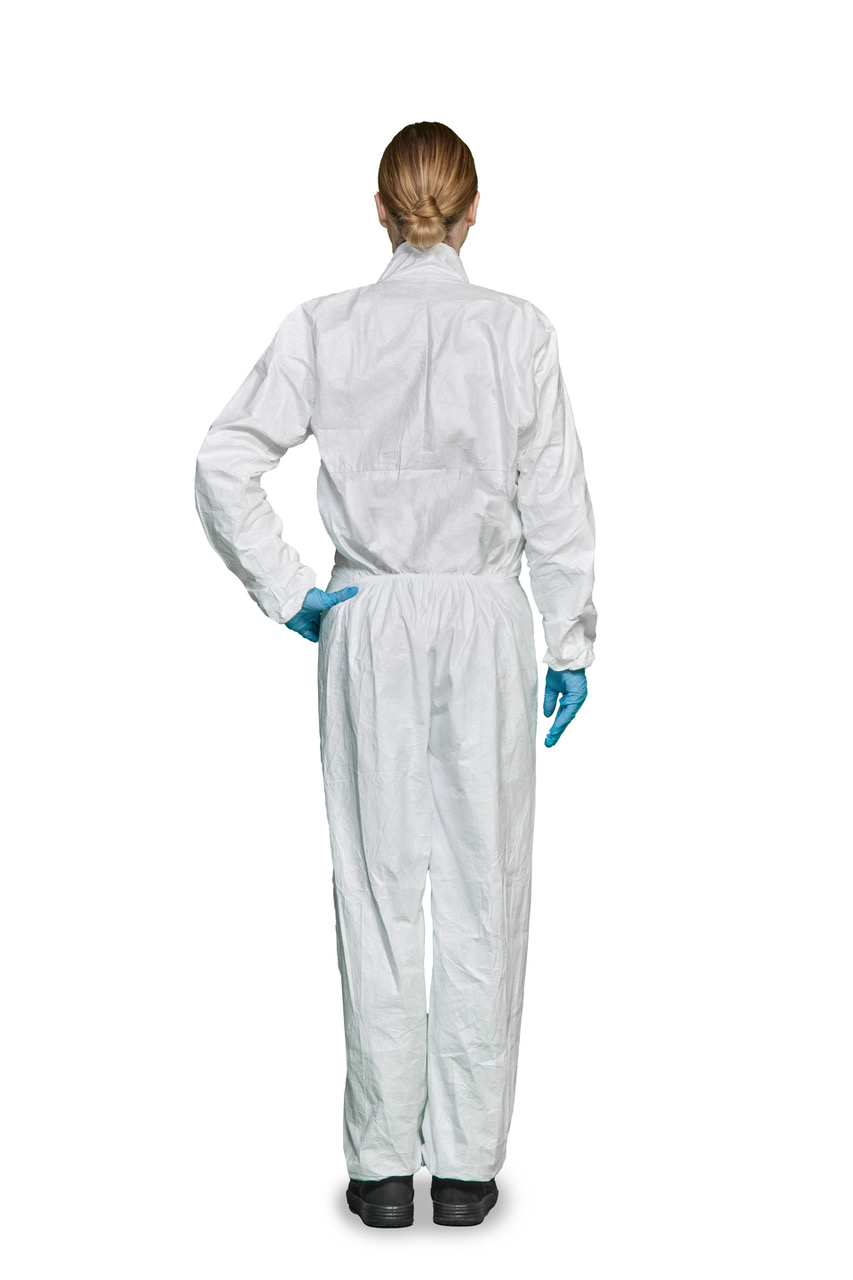

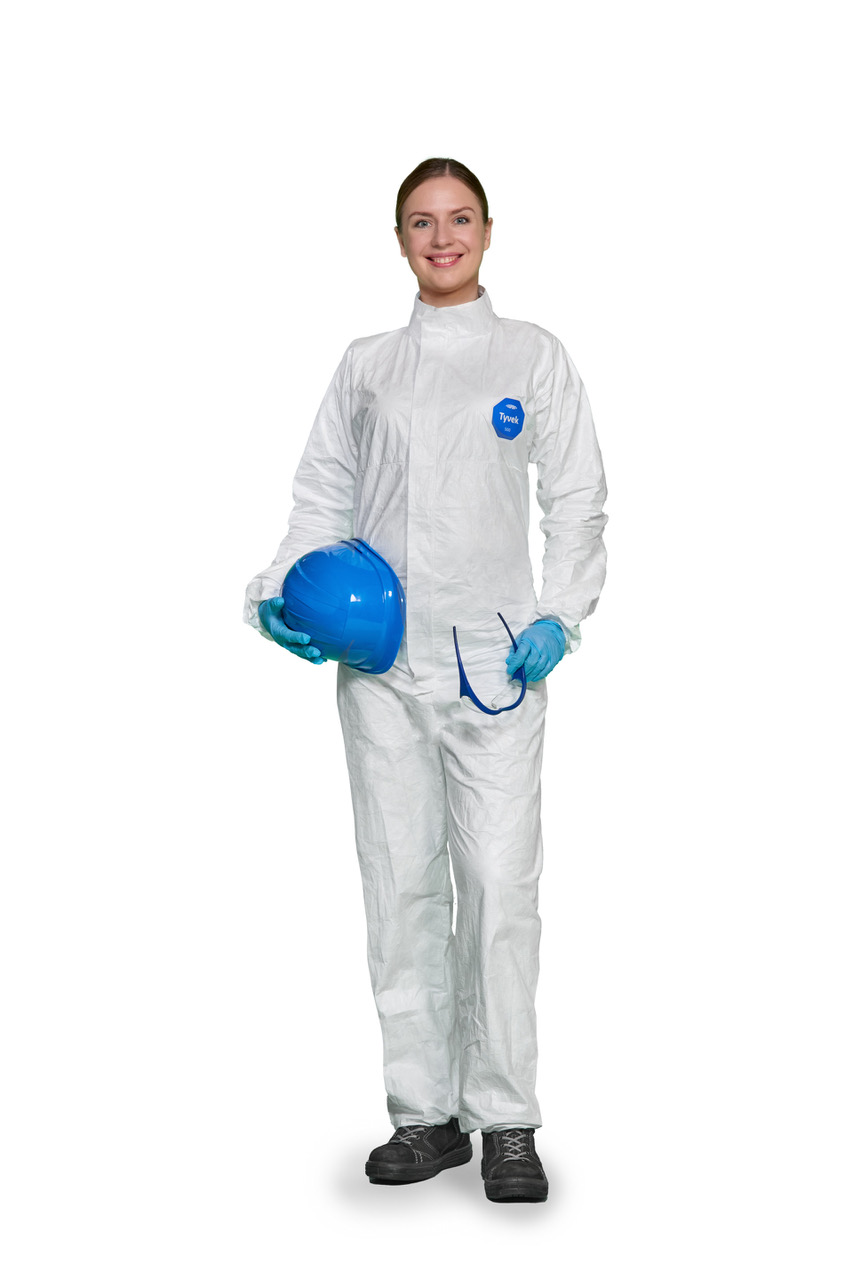

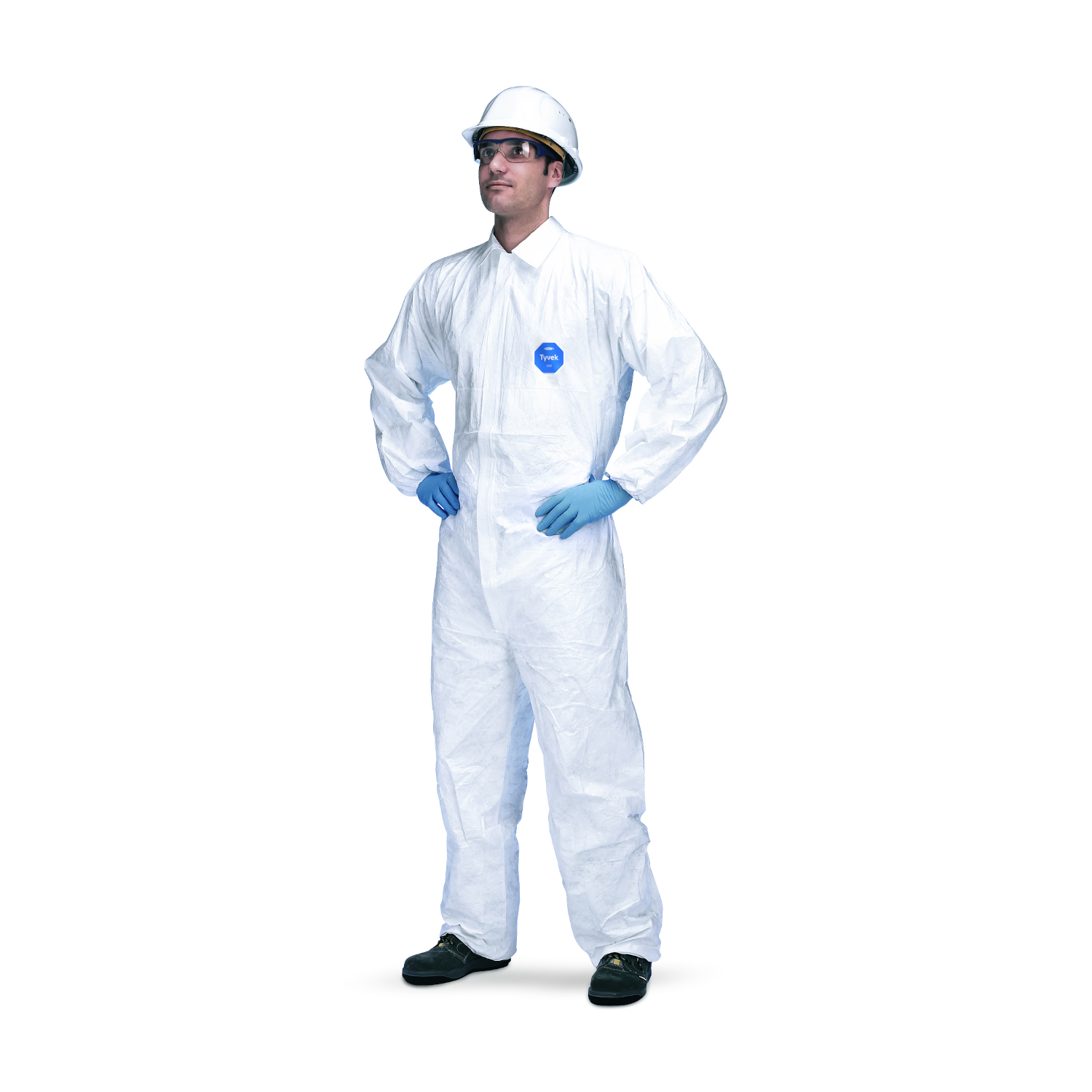

DuPont™ Tyvek® 500 Industry. Coverall with collar. Stitched internal seams. Elasticated wrists and ankles. Elasticated waist (stitched-in). Tyvek® zipper and flap. White.




Hover over image to zoom

CAT III

T5

T6

EN 1073-2

EN 1149-5

Name Description
Full Part Number TYCCF5SWH00
Fabric/Materials Tyvek®
Design Collared coverall with elastics
Seam Stitched (internal)
Color White
Sizes SM, MD, LG, XL, 2X, 3X
Quantity/Box 100 per box, individually packed.

FEATURES & PRODUCT DETAILS

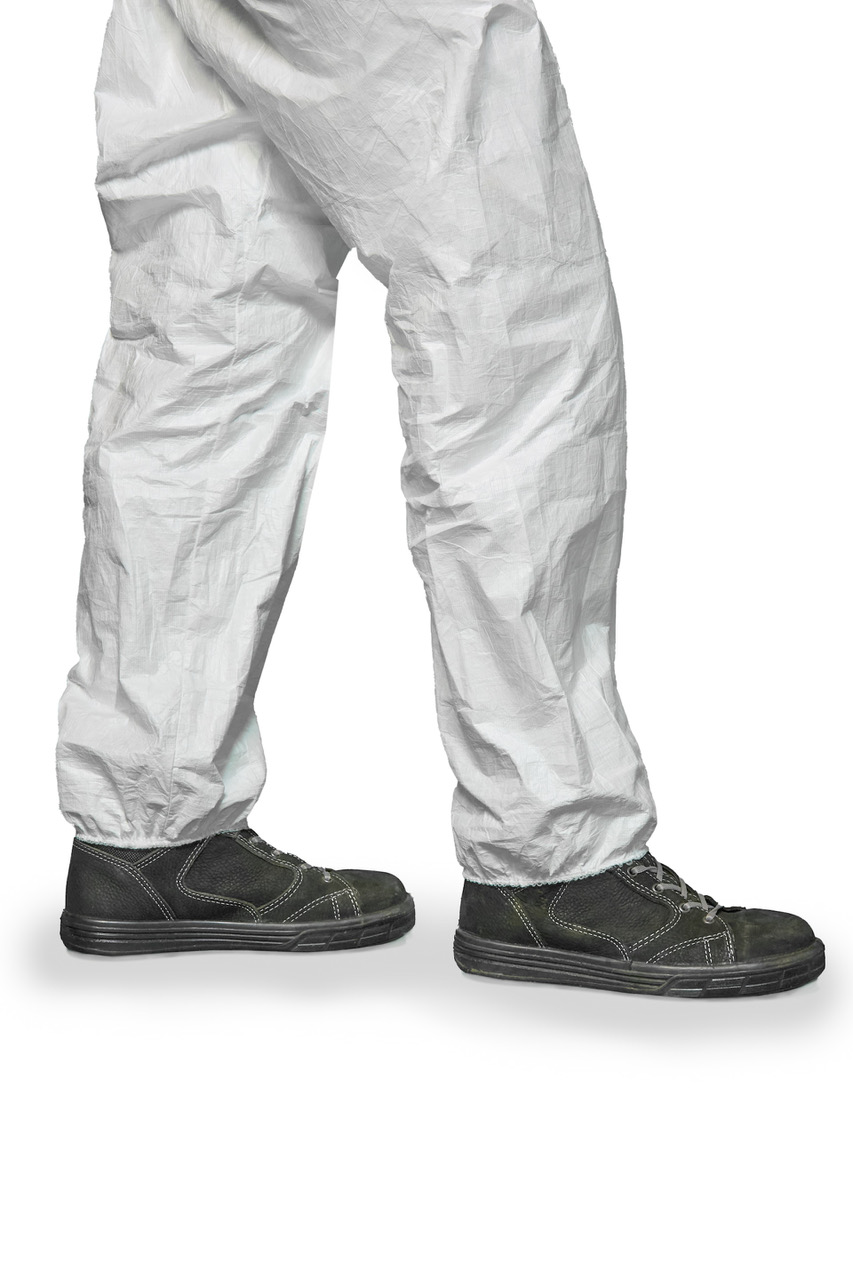

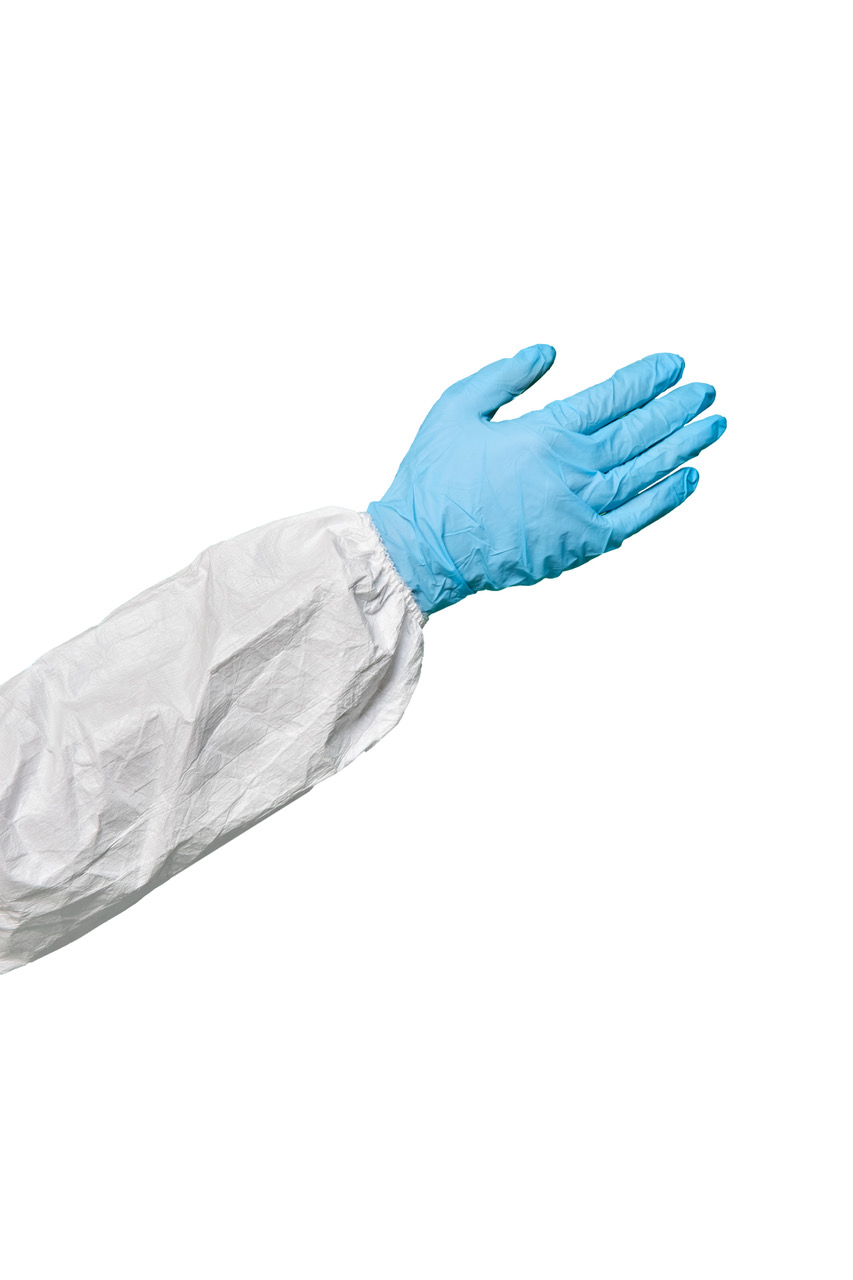

DuPont™ Tyvek® 500 Industry. Coverall with collar, available in white and sizes SM to 3X. Robust yet lightweight coverall (<180g per garment). Elasticated wrists, waist and ankles. Gusset for improved fit.
Tyvek® garments are composed of flash spun high density polyethylene, providing an ideal balance of protection, durability and comfort. Tyvek® is permeable to both air and water vapour, yet repels water-based liquids and aerosols. It offers an excellent barrier against fine particles and fibres (down to 1 micron in size), is ultra-low-linting and antistatically treated. Silicon non-added.
This garment is ideal for workers in pharmaceutical, medical device, biotech and electronic settings that require high standards for particle and microbiological contamination control.

  • Certified according to Regulation (EU) 2016/425.
  • Chemical protective clothing, Category III, Type 5 and 6.
  • EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-5) - on both sides.
  • Stitched internal seams to help reduce contamination from the inside to the outside of the garment
  • Tyvek® zipper and zipper flap for enhanced protection
  • Suitable for use in GMP class C/D (ISO Class 6-9) clean rooms

ADDITIONAL EQUIPMENT NEEDED

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2/6 1
Basis Weight DIN EN ISO 536 41.5 g/m2 N/A
Colour. N/A (598) White N/A
Exposure to high Temperature N/A (598) Melting point ~135 °C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6/6 1
Puncture Resistance EN 863 >10 N 2/6 1
Resistance to water penetration AATCC 127 >10 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >30 N 1/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >30 N 1/6 1
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

WARNING

PERMEATION DATA
