Tyvek / Tyvek® 500 Xpert

TYCHF5SWHXB/TYCHF5SWHXB

Tyvek® 500 Xpert

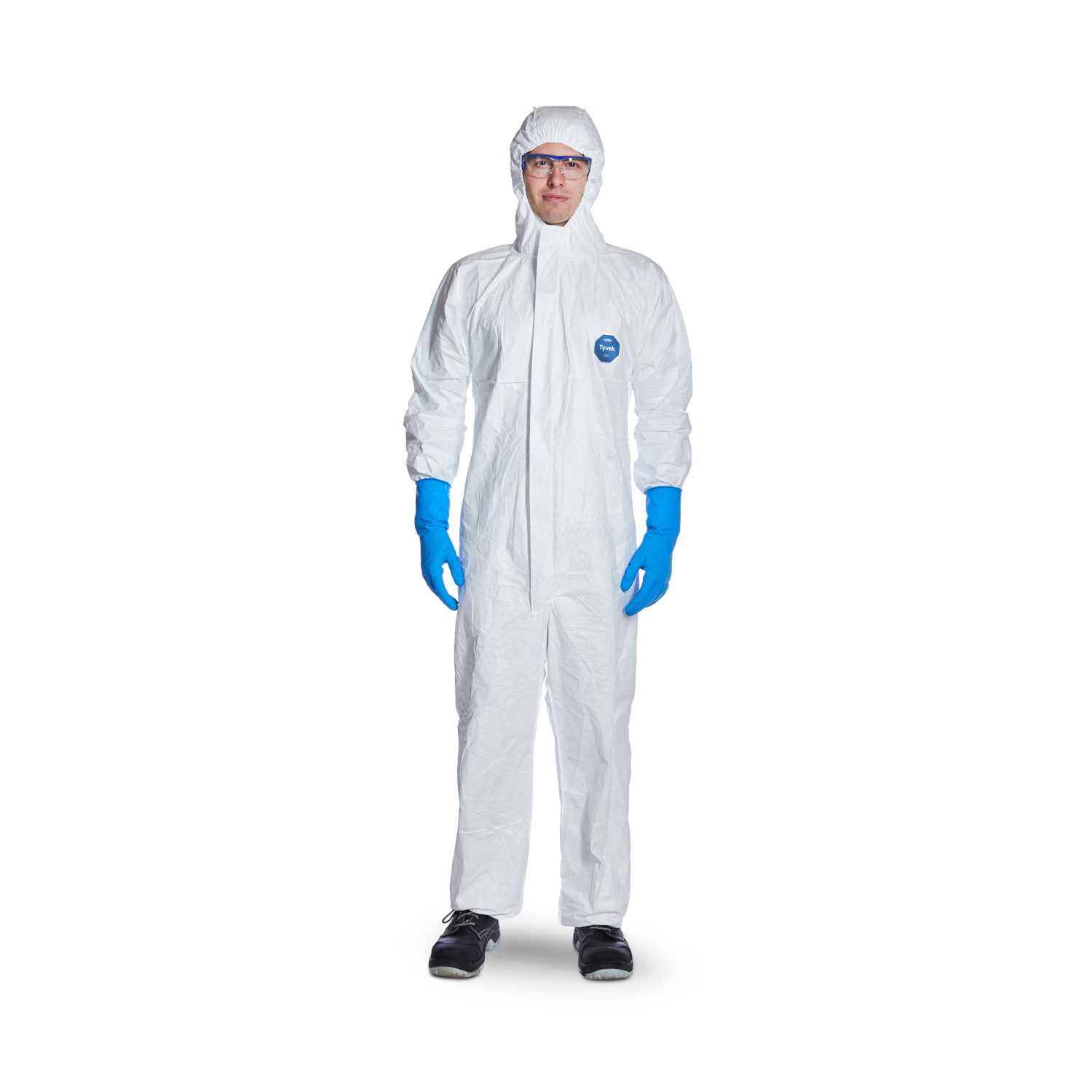

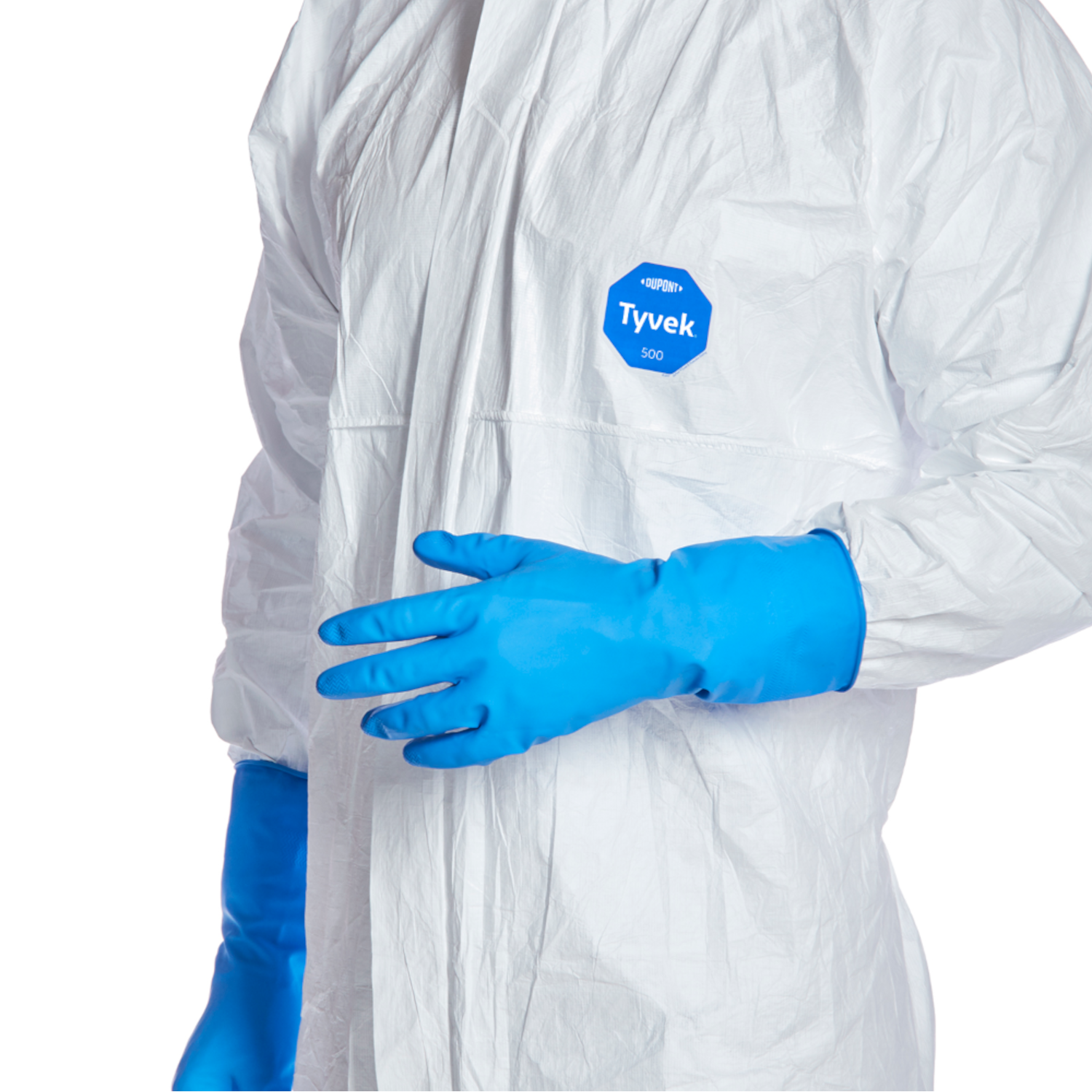

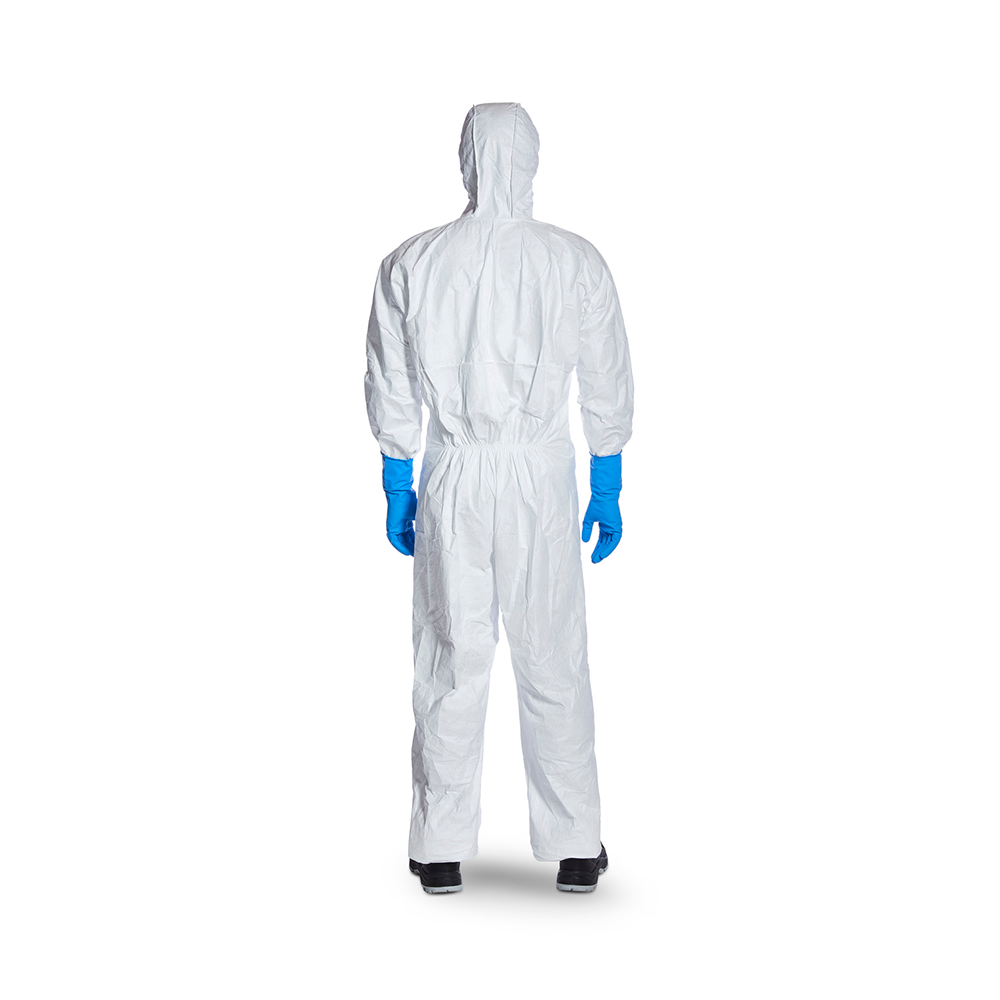

DuPont™ Tyvek® 500 Xpert/DuPont™ Tyvek® 500 Xpert (EcoPack). Hooded coverall. Ergonomic-protective design. Stitched external seams. Elasticated wrists, ankles and face. Elasticated waist (glued-in). Tyvek® zipper and flap. Eco Pack available. White.




Hover over image to zoom

CAT III

T5

T6

EN 1073-2

EN 1149-5

EN 14126

Name Description
Full Part Number TYCHF5SWHXP/TYCHF5SWHXB
Fabric / Material Tyvek® 500
Design Hooded coverall with elastics
Seam Stitched (external)
Color White
Sizes SM,MD,LG,XL,2X,3X
Quantity/Box 100 per box, individually packed/100 per box, 4 units of 25 (Eco Pack)
Other Colors Blue,Green

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® 500 Xpert/DuPont™ Tyvek® 500 Xpert (Ecopack). Hooded coverall available in white, in sizes SM to 3X (blue and green garments also available). Robust yet lightweight (<180g per garment). 3-piece hood for optimal fit to head and face when turning. Elasticated face, wrists and ankles as well as glued-in waist elastic. Ample crotch area for freedom of movement. Large, easy-to-grasp zipper puller.
Tyvek® garments are composed of flash spun high density polyethylene, providing an ideal balance of protection, durability and comfort. Tyvek® is permeable to both air and water vapour, yet repels water-based liquids and aerosols. It offers an excellent barrier against fine particles and fibres (down to 1 micron in size), is ultra-low-linting and antistatically treated. Silicon non-added.

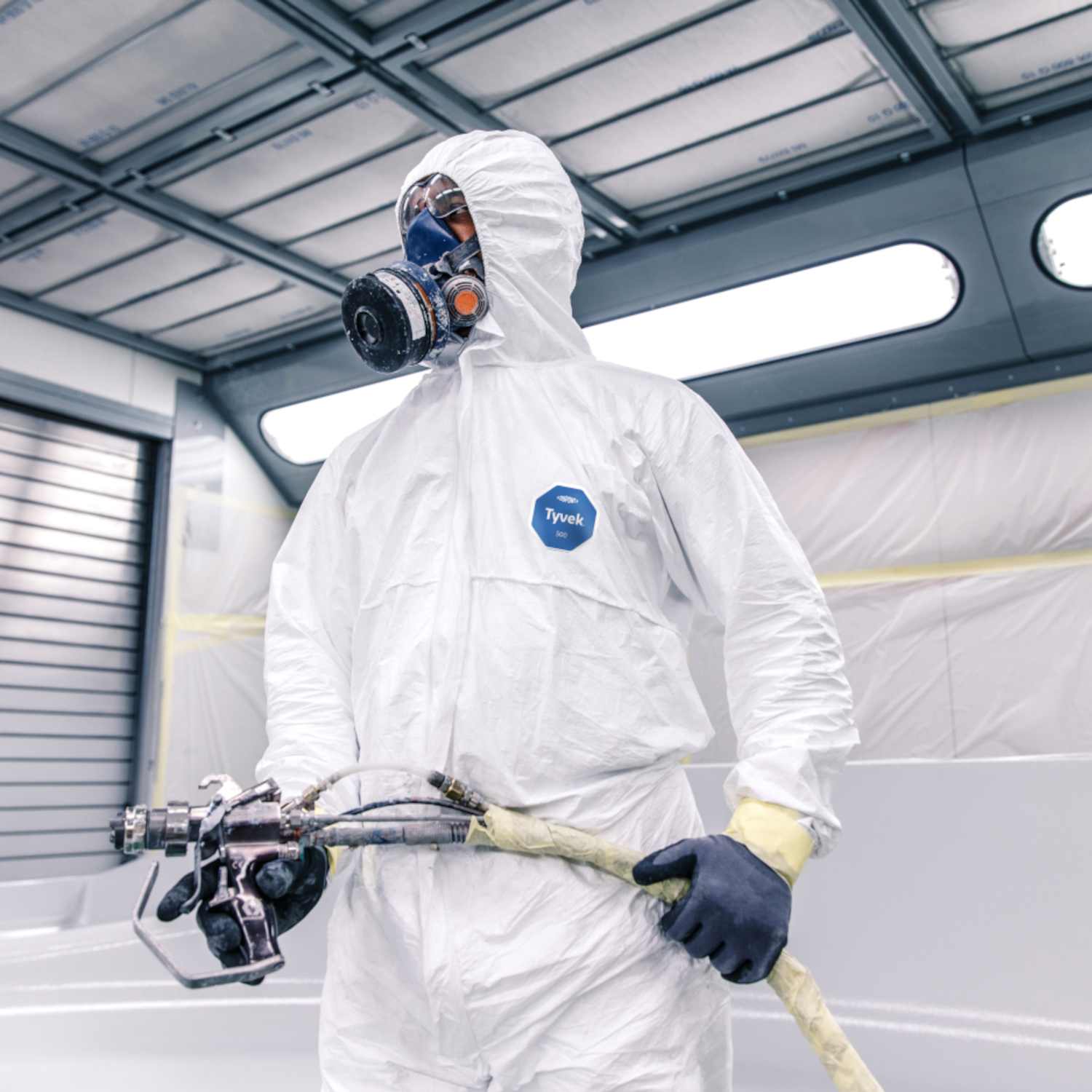

Applications for Tyvek® 500 Xpert garments include those found in pharmaceutical handling, chemical processing, the oil and gas industry, general maintenance and operations, automatic spray painting and many others.

  • Certified according to Regulation (EU) 2016/425
  • Chemical protective clothing, Category III, Type 5-B and 6-B
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-5) - on both sides
  • Stitched external seams
  • Very low inward leakage thanks to optimised design

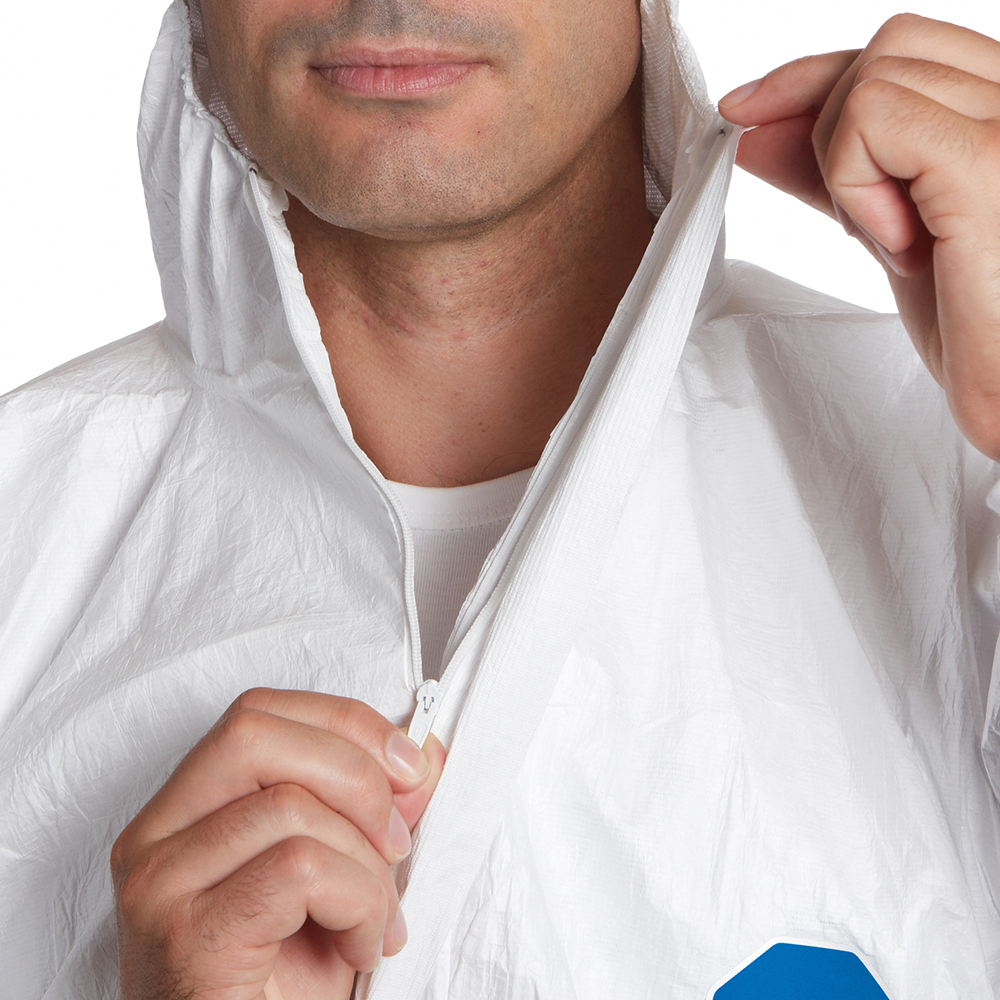

  • Tyvek® auto-lock zipper and zipper flap for increased protection
  • NEW! TYVEK®  Classic Xpert - ECO PACK: A new packaging concept from DuPont

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2/6 1
Basis Weight DIN EN ISO 536 41.5 g/m2 N/A
Colour N/A White N/A
Exposure to high Temperature N/A Melting point ~135 °C N/A
Exposure to low Temperature N/A Flexibility retained down to -73 °C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6/6 1
Flex Cracking Resistance at -30°C EN ISO 7854 Method B >4000 cycles N/A
Puncture Resistance EN 863 >10 N 2/6 1
Resistance to Water Penetration DIN EN 20811 >10 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >60 N 2/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >60 N 2/6 1
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PERMEATION DATA

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

CLEANILESS

Warnings
