Tyvek / Tyvek® 500 Xpert

TYCHF5SBU00

Tyvek® 500 Xpert

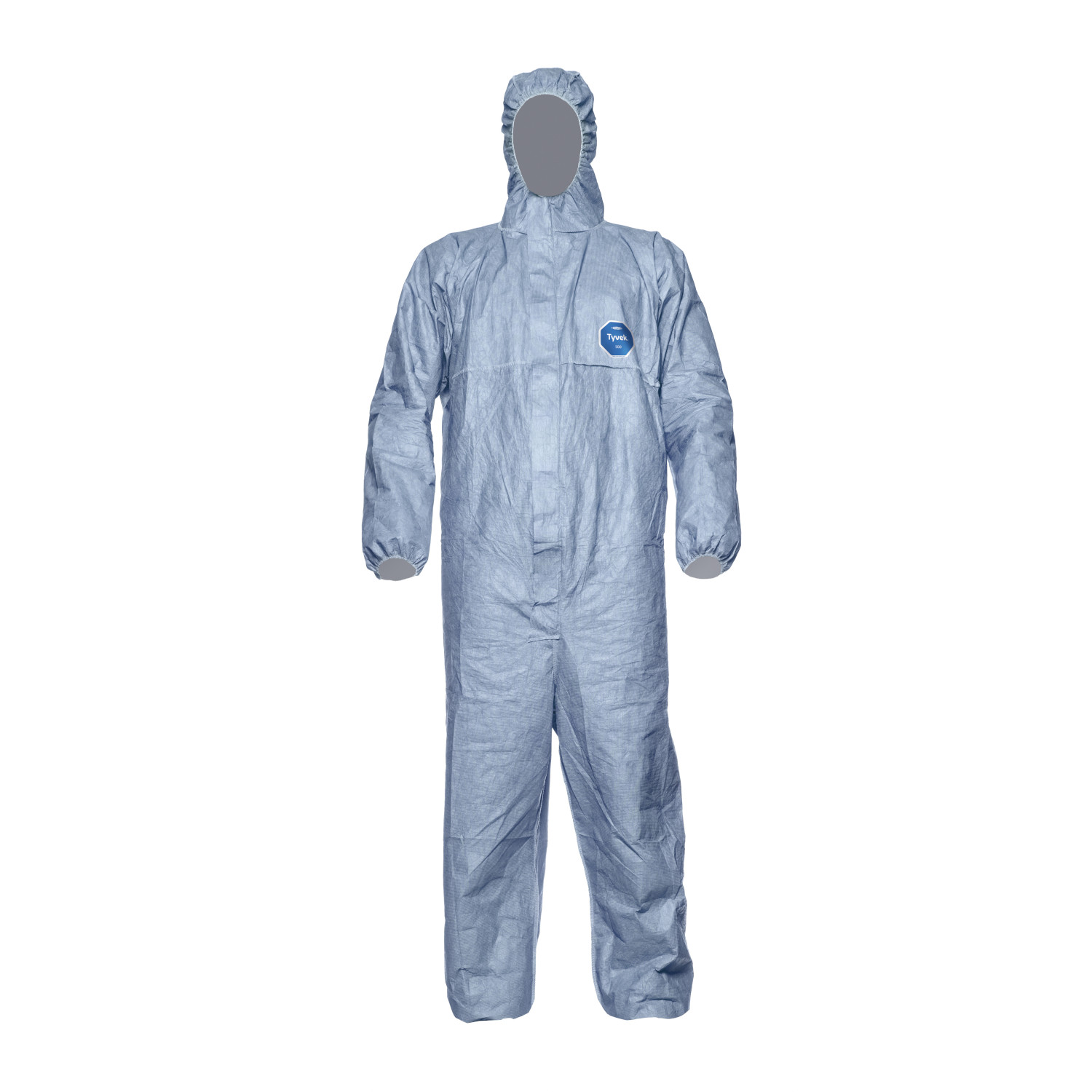

DuPont™ Tyvek® 500 Xpert Blue. Hooded coverall. Ergonomic-protective design. Stitched external seams. Elasticated wrists, ankles and face. Elasticated waist (glued-in). Tyvek® zipper and flap. Blue




Hover over image to zoom

CAT III

T5

T6

EN 1073-2

EN 1149-5

EN 14126

Name Description
Full Part Number TYCHF5SBU00
Fabric / Material Tyvek® 500 Blue
Design Hooded coverall with elastics
Seam Stitched (external)
Color Blue
Other Colors Green,White
Sizes SM, MD, LG, XL, 2X, 3X
Quantity/Box 100 per box, individually packed.

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® 500 Xpert Blue. Hooded coverall available in blue, in sizes SM to 3X (white and green garments also available). Robust yet lightweight (<180g per garment). 3-piece hood for optimal fit to head and face when turning. Elasticated face, wrists and ankles as well as glued-in waist elastic. Ample crotch area for freedom of movement. Large, easy-to-grasp zipper puller.
Tyvek® garments are composed of flash spun high density polyethylene, providing an ideal balance of protection, durability and comfort. Tyvek® is permeable to both air and water vapour, yet repels water-based liquids and aerosols. It offers an excellent barrier against fine particles and fibres (down to 1 micron in size), is ultra-low-linting and antistatically treated. Silicon non-added.
Applications for Tyvek® 500 Xpert garments include those found in pharmaceutical handling, chemical processing, the oil and gas industry, general maintenance and operations, automotive spray painting and many others.

  • Certified according to Regulation (EU) 2016/425
  • Chemical protective clothing, Category III, Type 5-B and 6-B
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-5) - on inside
  • Stitched external seams
  • Very low inward leakage thanks to optimised design
  • Tyvek® auto-lock zipper and zipper flap for increased protection
  • Chemical permeation of coloured Tyvek® L3431N is not identical to that of white Tyvek® L1422A.

SIZES

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2/6 1
Basis Weight DIN EN ISO 536 44 g/m2 N/A
Colour N/A Blue N/A
Exposure to high Temperature N/A Melting point ~135 °C N/A
Exposure to low Temperature N/A Flexibility retained down to -73 °C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6/6 1
Flex Cracking Resistance at -30°C EN ISO 7854 Method B >4000 cycles N/A
Puncture Resistance EN 863 >10 N 2/6 1
Resistance to water penetration DIN EN 20811 12 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >60 N 2/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >60 N 2/6 1
Thickness DIN EN ISO 534 140 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

Warning

PERMEATION DATA
