Tyvek / Tyvek® 800 J

TJ0198TWHPI

Tyvek® 800 J

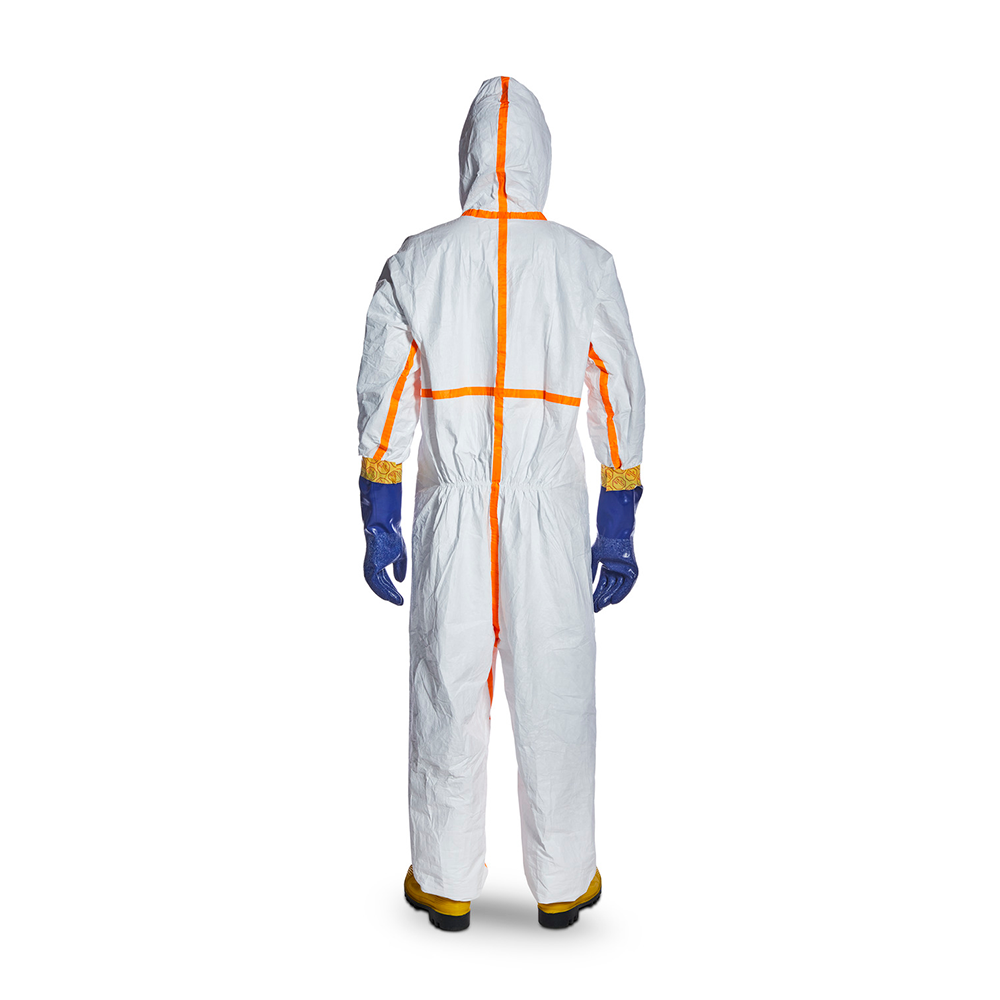

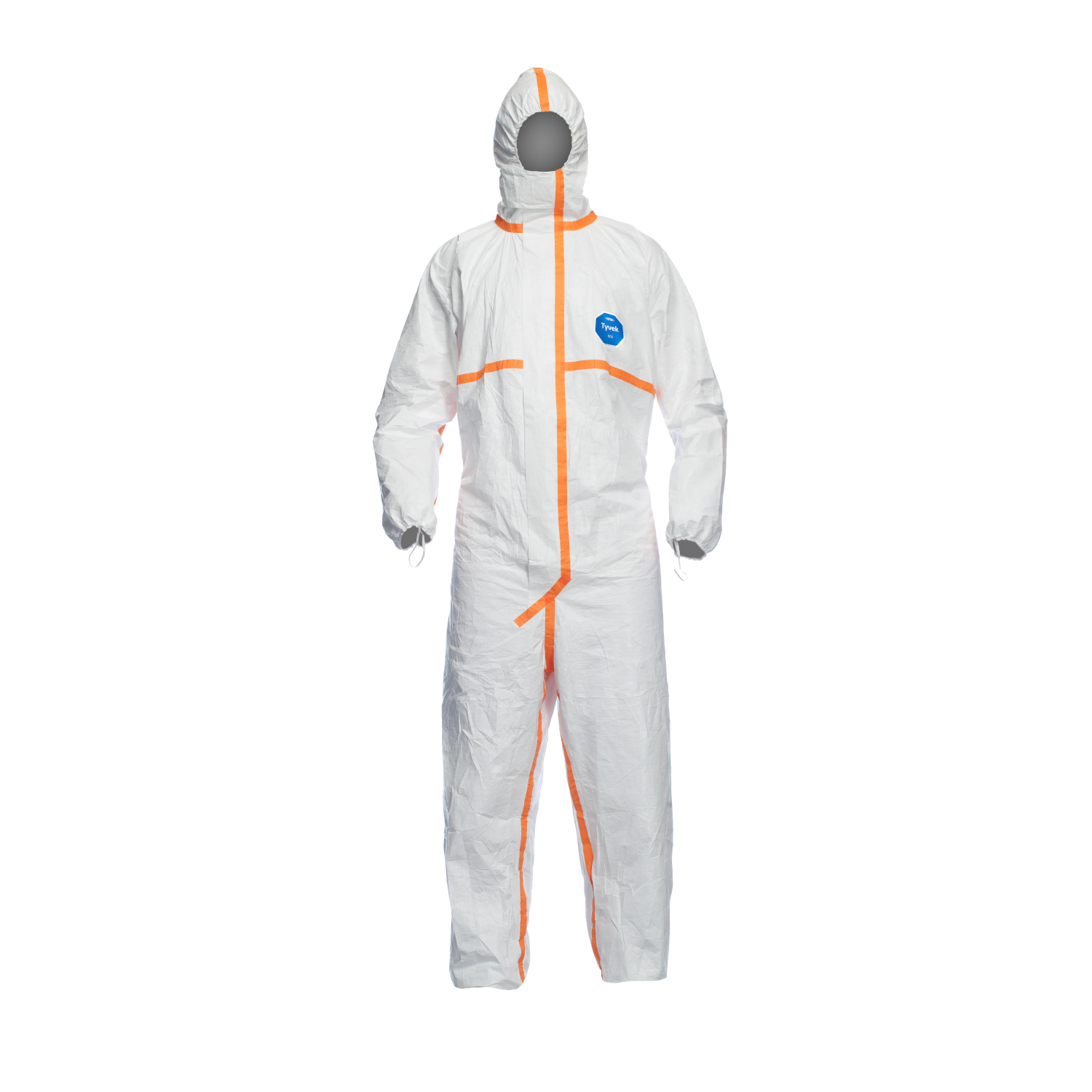

DuPont™ Tyvek® 800 J. Hooded coverall. Stitched and over-taped seams. Thumb loops. Elastication at wrists, ankles and face. Elasticated waist (glued-in). Tyvek® zipper. Self-adhesive zipper and chin flap. White.




Hover over image to zoom

CAT III

T3

T4

T5

T6

EN 1073-2

EN 1149-5

EN 14126

Name Description
Full Part Number TJ0198TWHPI
Fabric / Material Tyvek® 800
Design Hooded coverall with elastics and thumb loops
Seam Stitched and over-taped, orange
Color White
Sizes SM,MD,LG,XL,2X,3X,4X,5X,6X,7X
Quantity/Box 25 per box, individually packed.

FEATURES & PRODUCT DETAILS

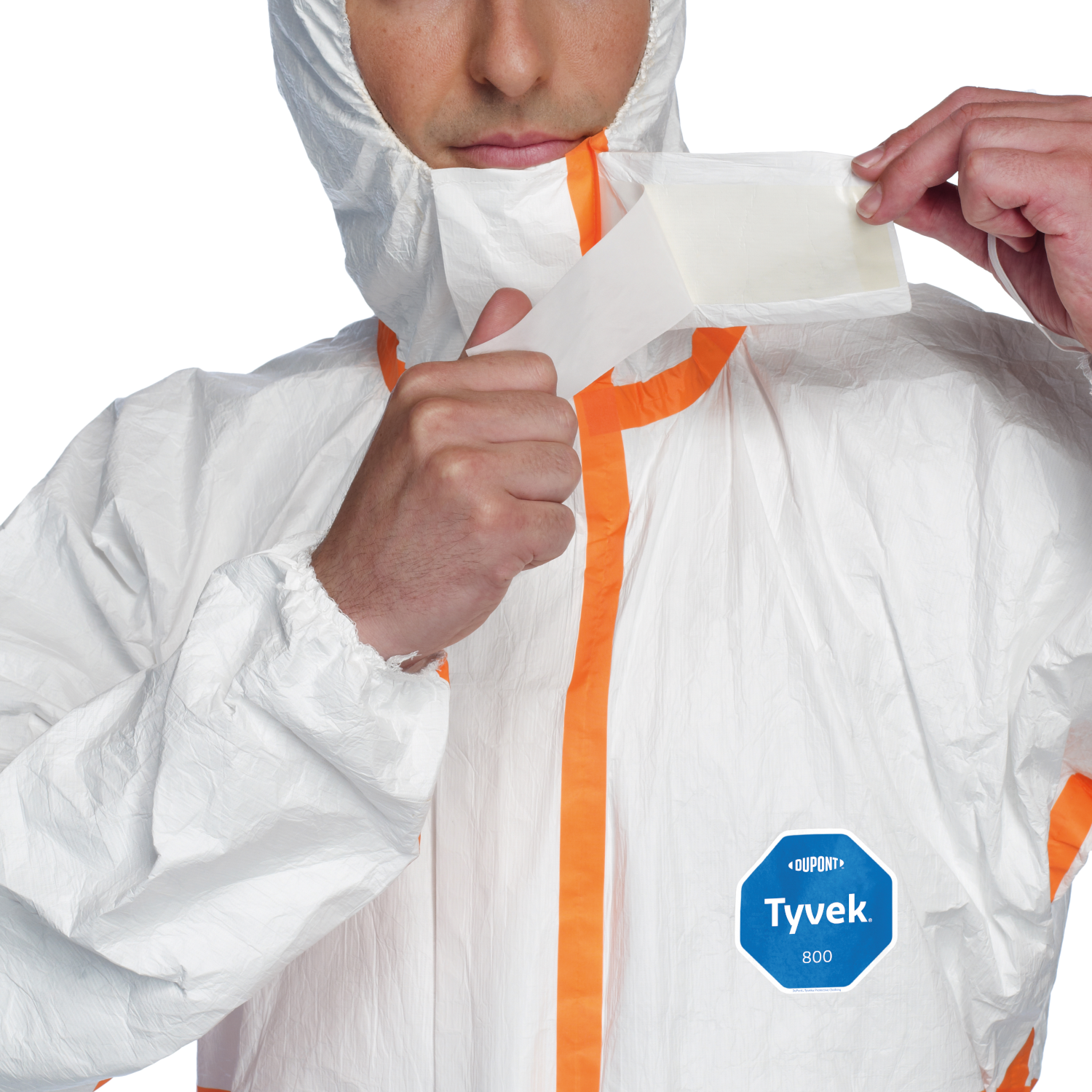

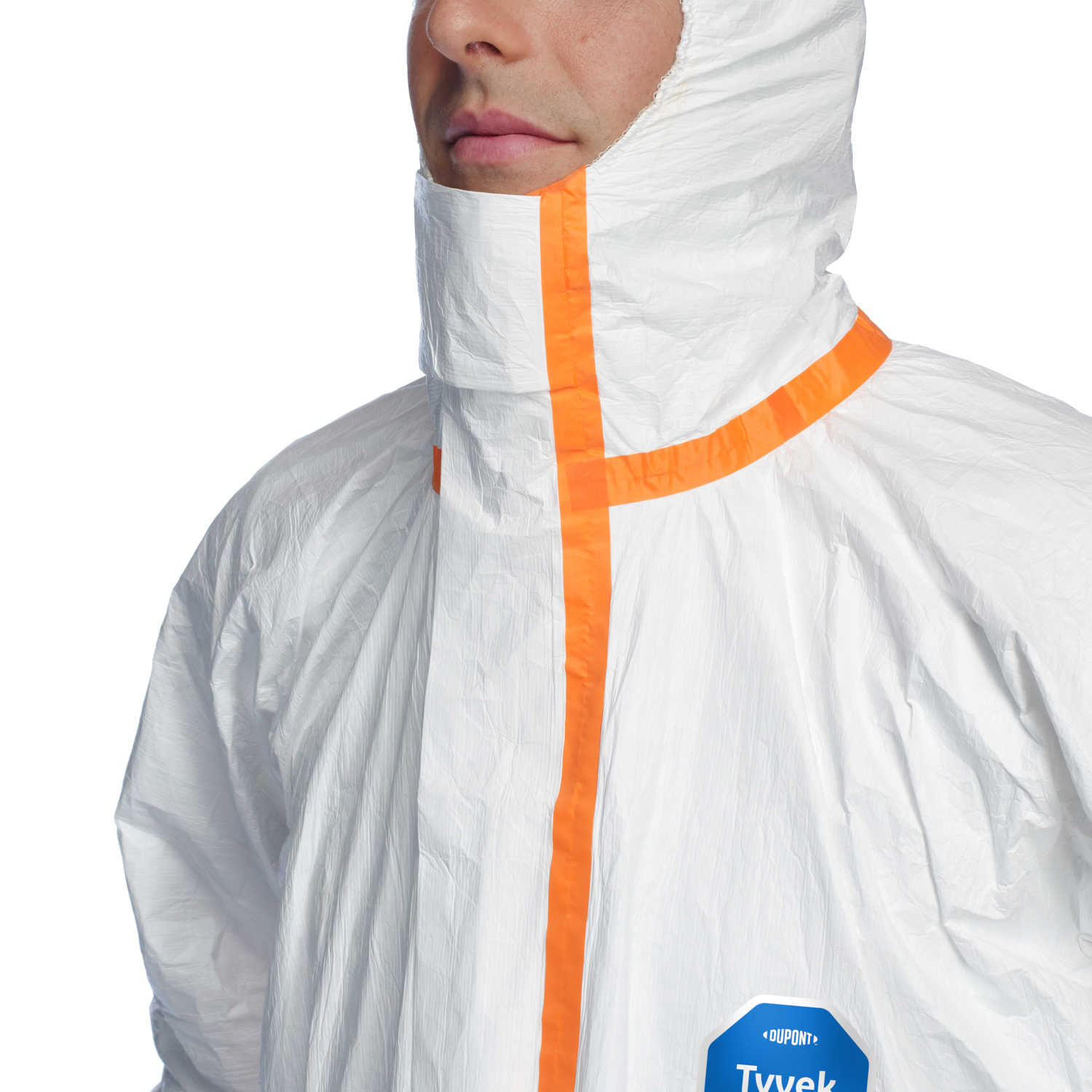

DuPont™ Tyvek® 800 J. Hooded coverall available in white, in sizes SM to 7X. Robust yet lightweight (<300g). Self-adhesive zipper flap. Self-adhesive chin flap for tight seal of suit to mask. Elasticated face, wrists and ankles as well as glued-in waist elastic. Thumb loops to prevent sleeves from riding up.
Tyvek® 800 garments provide an ideal balance of protection, durability and comfort. They benefit from the use of a specific 'impervious technology' to achieve an effective barrier against many low-concentrated water-based inorganic chemicals (even under pressure) and small-sized hazardous particulates, as well as oil repellency. The fabric is antistatically treated. Silicon non-added.
Applications for Tyvek® 800 J garments include those in very humid applications requiring chemical, liquid protection and/or oil repellency. Typical activities include industrial cleaning, work at petrochemical installations, in sewers and maintenance operations.
For assistance with this new product, please visit www.dupont.co.uk/Tyvek800J

  • Certified according to Regulation (EU) 2016/425
  • Chemical protective clothing, Category III, Type 3-B, 4-B, 5-B and 6-B
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-5) - on inside
  • Stitched and over-taped seams for protection and strength
  • Tyvek® zipper and zipper flap for enhanced protection
  • Additional taping of cuffs, ankles, hood and zipper flap are required to achieve a type 3 liquid tightness
  • Face, wrist and ankle elastication for good fit

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2/6 1
Basis Weight DIN EN ISO 536 59 g/m2 N/A
Colour N/A White N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >15000 cycles 4/6 1
Puncture Resistance EN 863 >10 N 2/6 1
Resistance to Water Penetration DIN EN 20811 >25 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >60 N 2/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >60 N 2/6 1
Thickness DIN EN ISO 534 160 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PERMEATION DATA

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

Warnings
