Tyvek / ProShield® 20 SFR

F1CHF5SWH00

ProShield® 20 SFR

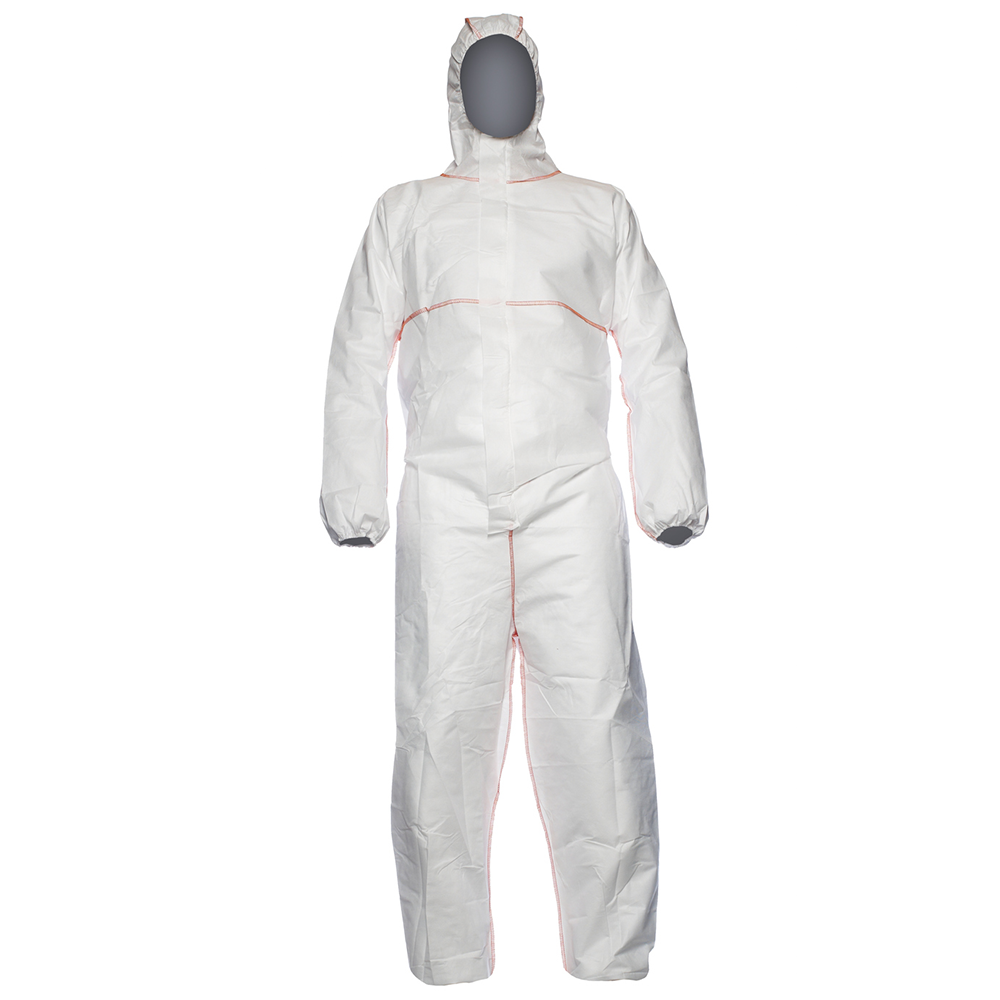

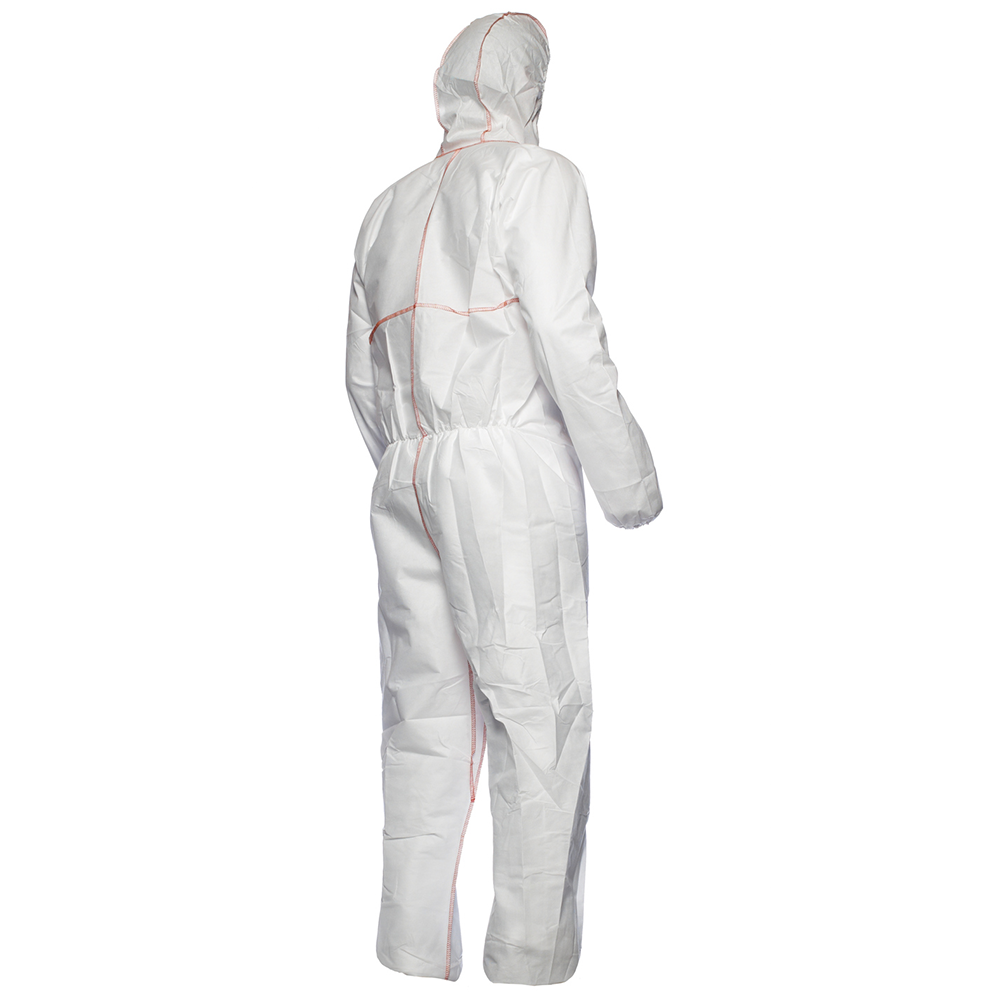

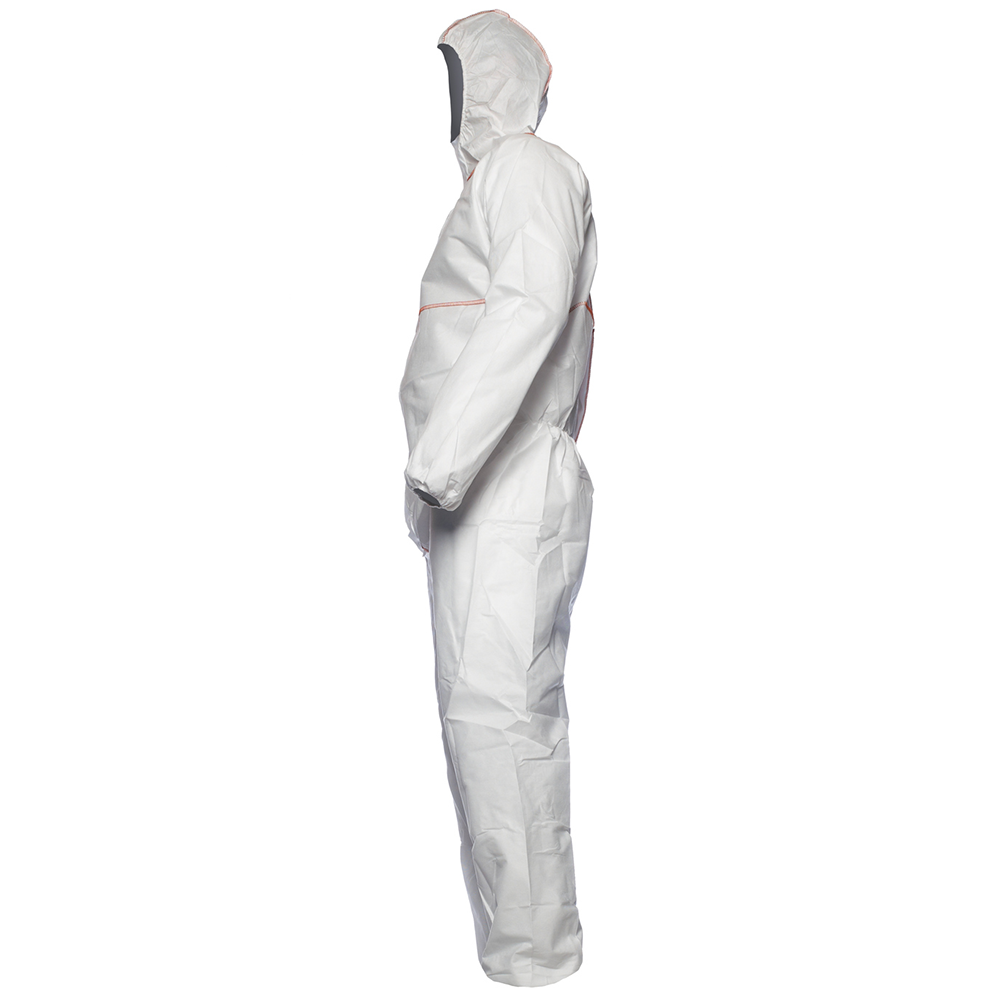

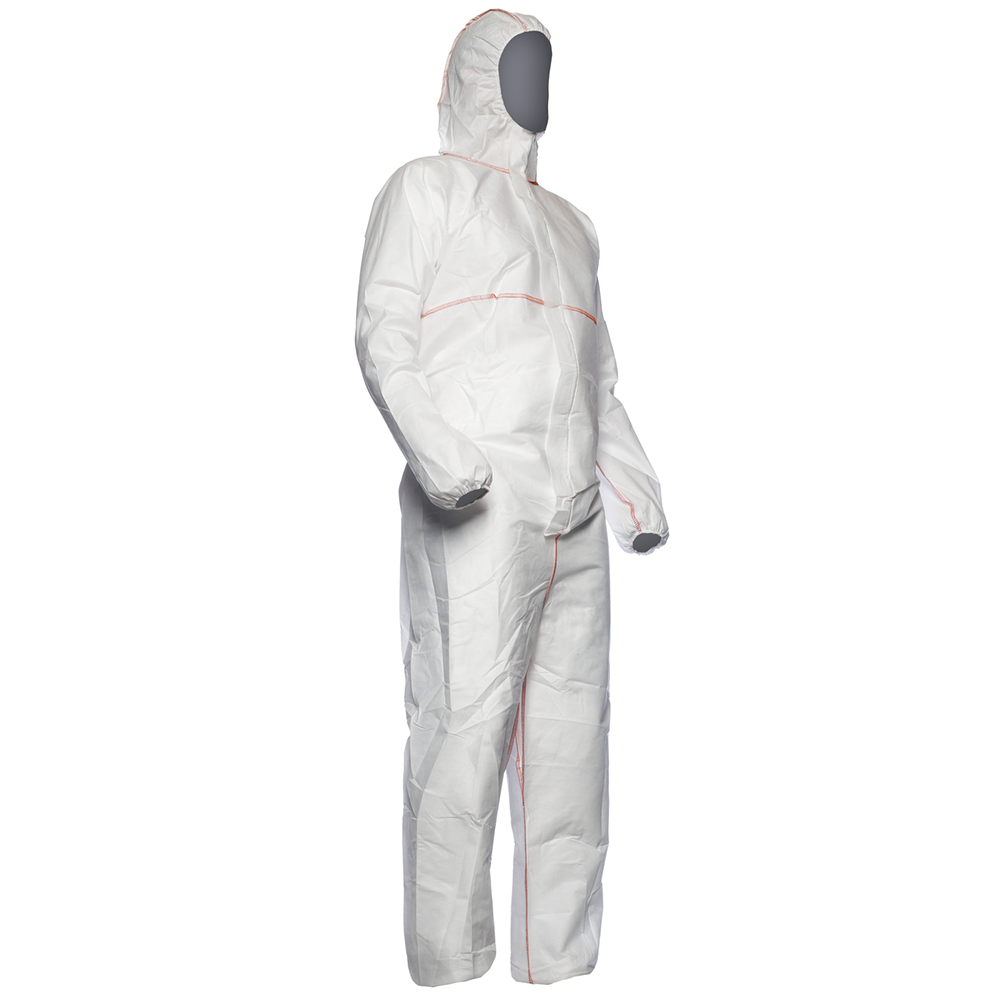

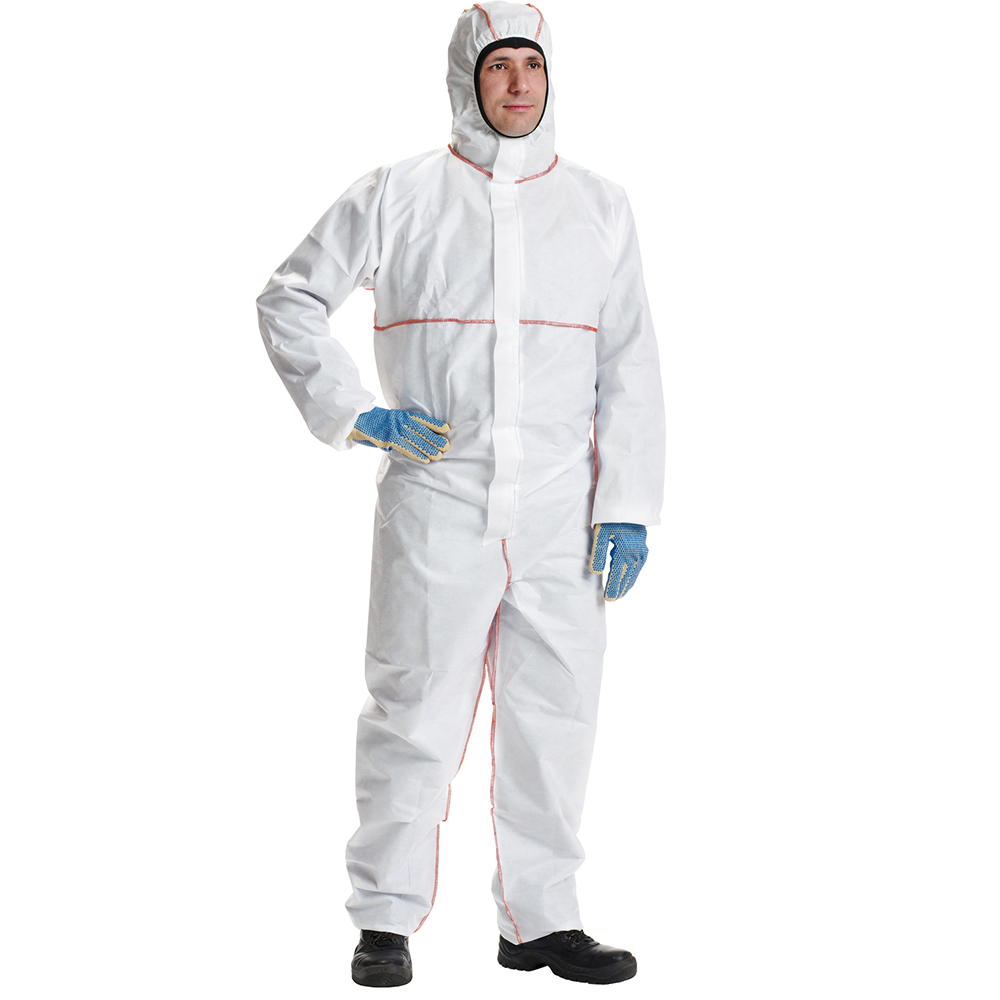

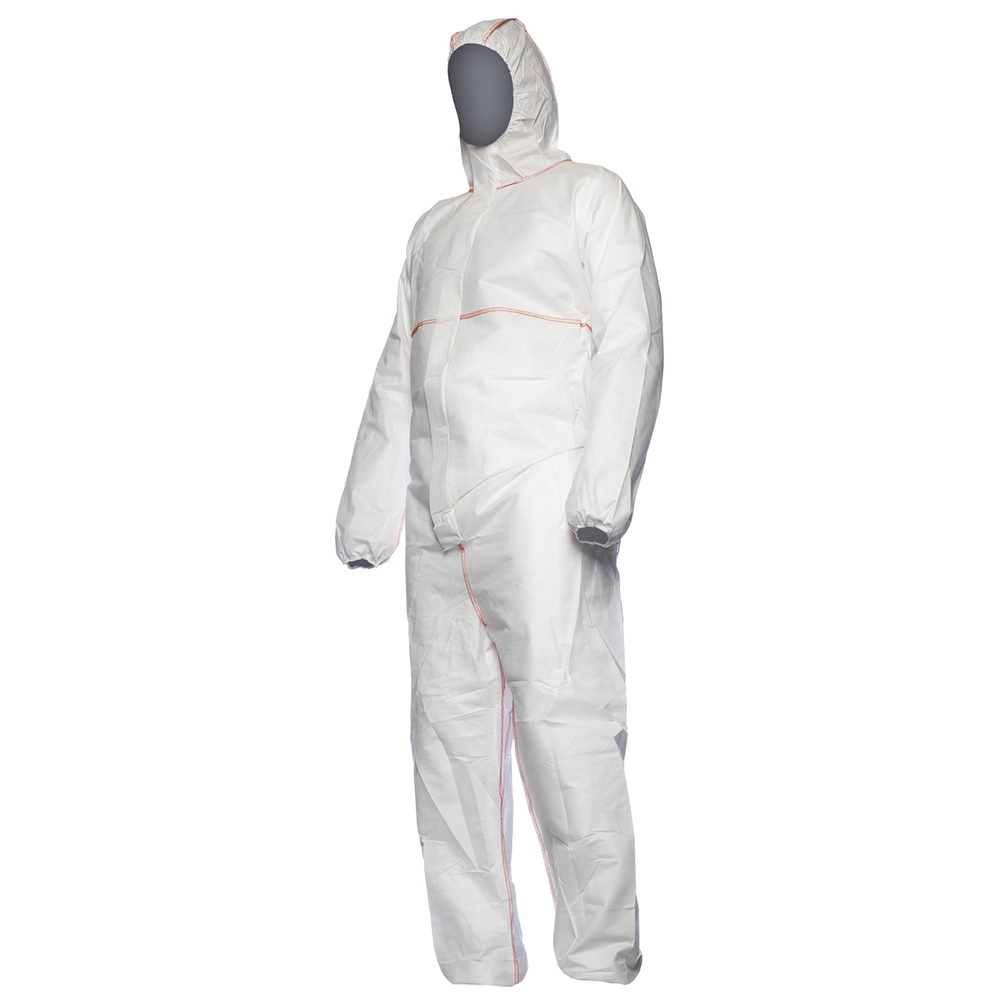

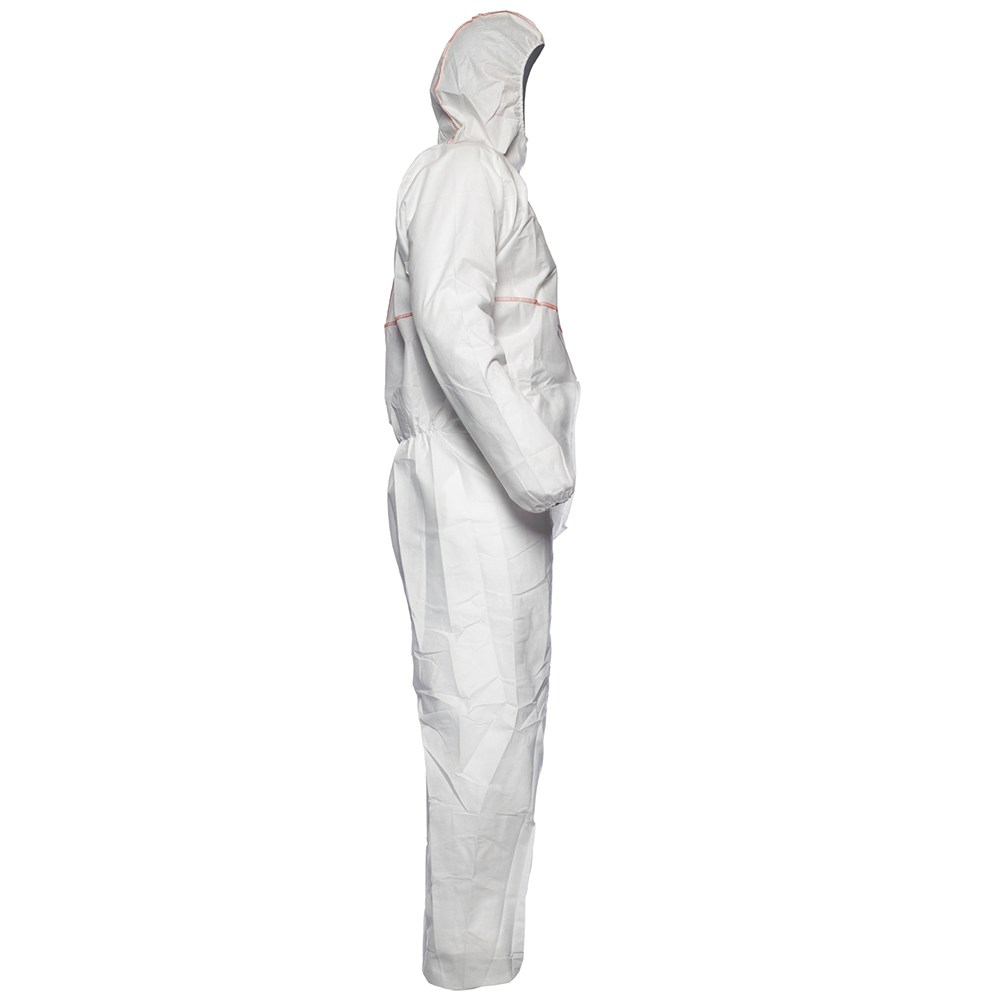

DuPont™ ProShield® 20 SFR. Limited flame spread coverall (index 1) with hood. Stitched external orange seams. Elasticated wrists, ankles, face and waist. White.




Hover over image to zoom

CAT III

T5

T6

EN 1073-2

EN 1149-5

EN 14116

Name Description
Full Part Number F1CHF5SWH00
Fabric / Material ProShield® 20 SFR
Design Hooded coverall with elastics
Seam Stitched (external), orange
Color White
Sizes MD,LG,XL,2X,3X
Quantity/Box 50 per box, individually packed.

FEATURES & PRODUCT DETAILS

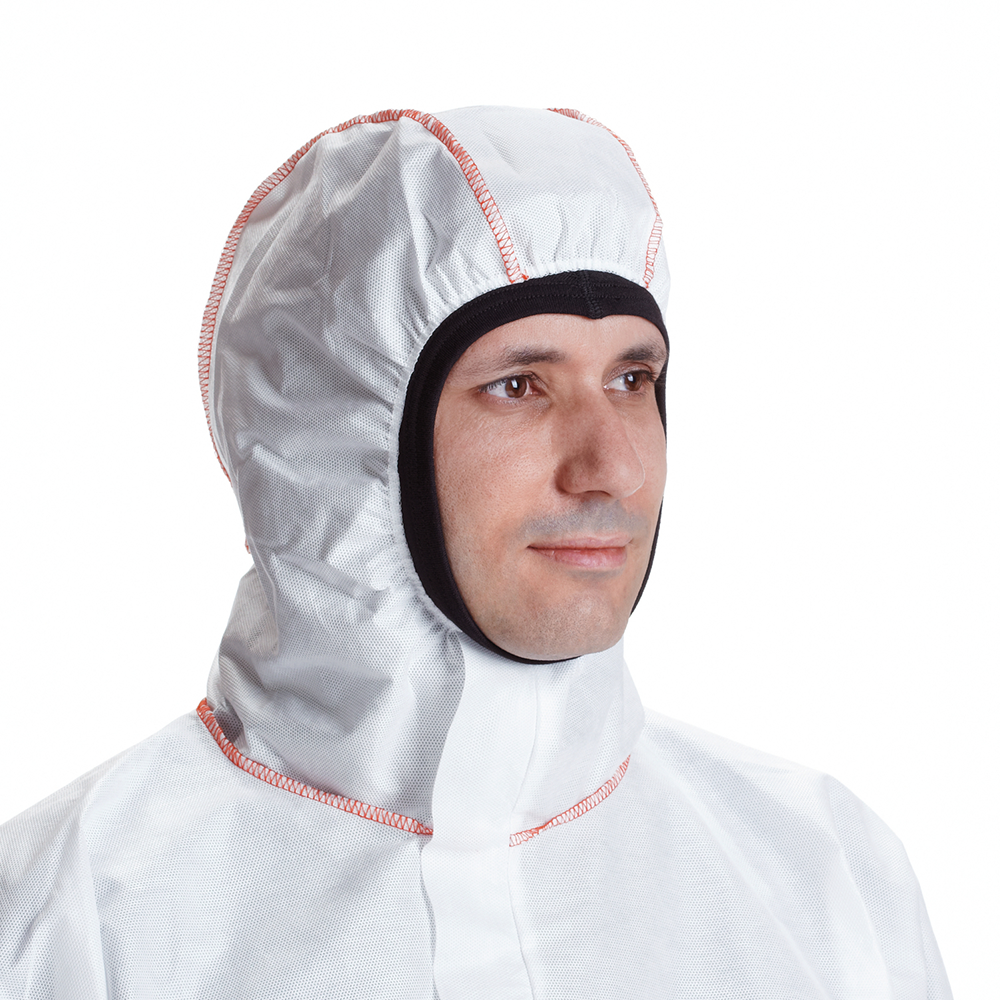

DuPont™ ProShield® 20 SFR. Hooded coverall available in white and in sizes MD to 3X. 3-piece hood and 3-piece gusset for optimal fit. Elasticated face, wrists, waist and ankles. Generous fit offering high freedom of movement when wearing index 2 or 3 flame-retardant workwear beneath.
ProShield® 20 SFR garments are made from a non-halogenated, flame-retardant polypropylene SMS nonwoven fabric, providing limited protection against flame spread (index 1) in addition to protection against particles and limited liquid splashes or sprays of water-based liquids. They must always be worn on top of a primary FR protection garment, such as Nomex® .
ProShield® 20 SFR garments are used across a range of applications, including those in the petrochemical and railway industries, welding, gas and metal applications and certain Ex-Zones (refer to instructions for use).

  • Certified according to Regulation (EU) 2016/425
  • Chemical protective clothing, Category III, Type 5 and 6
  • EN 14116 index 1 (limited flame spread), EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-5) - on both sides
  • Stitched external seams in orange for visual identification and differentiation
  • Zipper flap for protection

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2/6 1
Basis Weight DIN EN ISO 536 60 g/m2 N/A
Colour N/A White N/A
Exposure to high Temperature N/A Melting point ~165 °C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6/6 1
Flex Cracking Resistance at -30°C EN ISO 7854 Method B >4000 cycles N/A
Limited Flame Spread 7 EN ISO 15025:2003 procedure A Pass Index 1 4
Puncture Resistance EN 863 >5 N 1/6 1
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >30 N 1/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >30 N 1/6 1
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >20 N 2/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >20 N 2/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation
