Tyvek / Tyvek® IsoClean®

Model IC 668 B WH 00

Tyvek® IsoClean®

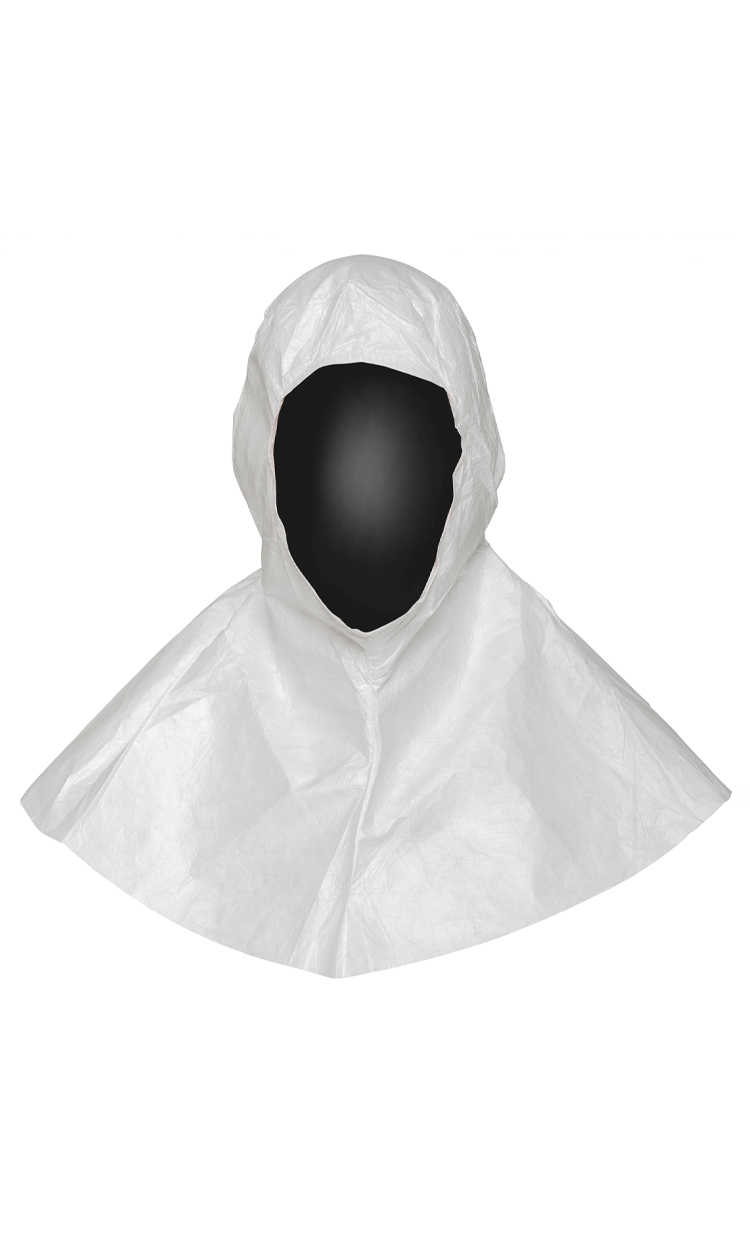

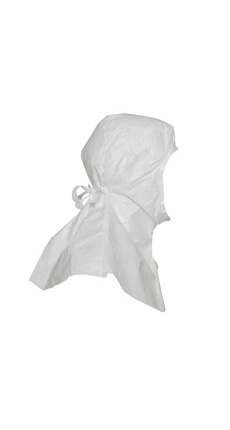

DuPont™ Tyvek® IsoClean® hood with ties model IC 668B00. Bound internal seams. Bound hood opening. Full face opening. Ties with loops. Not clean-processed and not sterilized. White.




Hover over image to zoom

CAT III

PB[6]

EN 14126

Name Description
Full Part Number IC0668BWH00
Fabric/Materials Tyvek® 500
Design Hood with ties
Seam Bound
Color White
Sizes 0
Quantity/Box 100 per box, bulk packed. 2 polyethylene liners. Cardboard box.

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® IsoClean® hood with ties, model IC668B00. Available in one size. Not clean-processed and not sterilized. Bound internal seams. Bound hood opening for low particle shedding. Full face opening. Ties with loops for adjustable fit.
Tyvek® IsoClean® delivers an ideal balance of protection, durability and comfort. Made of high density polyethylene using a patented flash spinning process. Tyvek® IsoClean® provides an inherent barrier to particles, microorganisms and non-hazardous water-based light liquid splash. Tyvek® IsoClean® is also breathable and exceptionally low linting.
Tyvek® IsoClean® (option codes 0B, 00 and BH) garments and accessories are neither clean-processed nor gamma-irradiated but manufactured in a controlled environment.
Garments and accessories made of Tyvek® IsoClean® are typically used in cleanrooms within the biotech, pharmaceutical, medical device manufacturing, food processing, cosmetics industry, electronics industries as well as in other critical or controlled environments.

  • Certified according to Regulation (EU) 2016/425.
  • Partial body chemical protective clothing, Category III, Type PB [6-B].
  • Suitable for use in GMP class C/D (ISO Class 6-9) clean rooms
  • Antistatic treatment (EN 1149-1) - on both sides; see footnotes.

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2/6 1
Colour. N/A (598) White N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6/6 1
Puncture Resistance EN 863 >10 N 2/6 1
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >30 N 1/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >30 N 1/6 1
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

WARNING

PERMEATION DATA
