Tyvek / Tychem® ThermoPro

TP0198TORCE

Tychem® ThermoPro


This product will be discontinued within the first half of 2024. Contact us for more details.

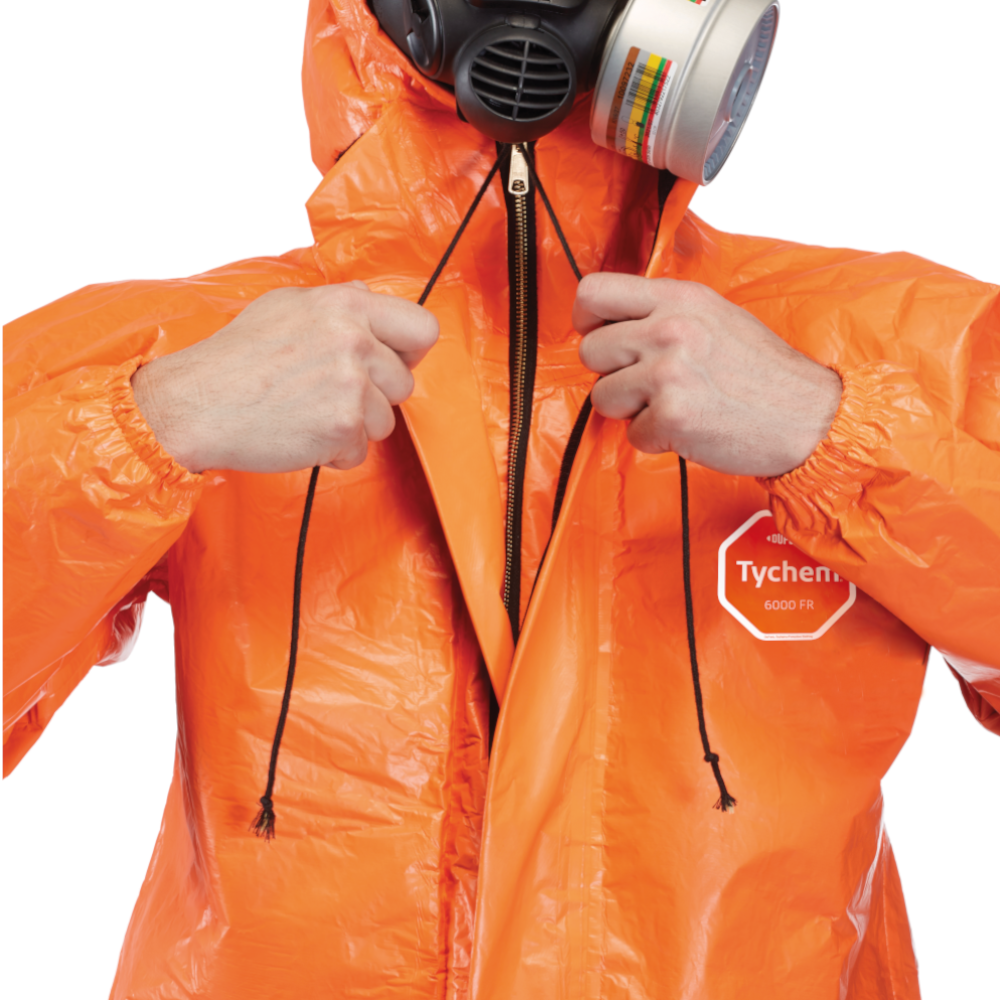

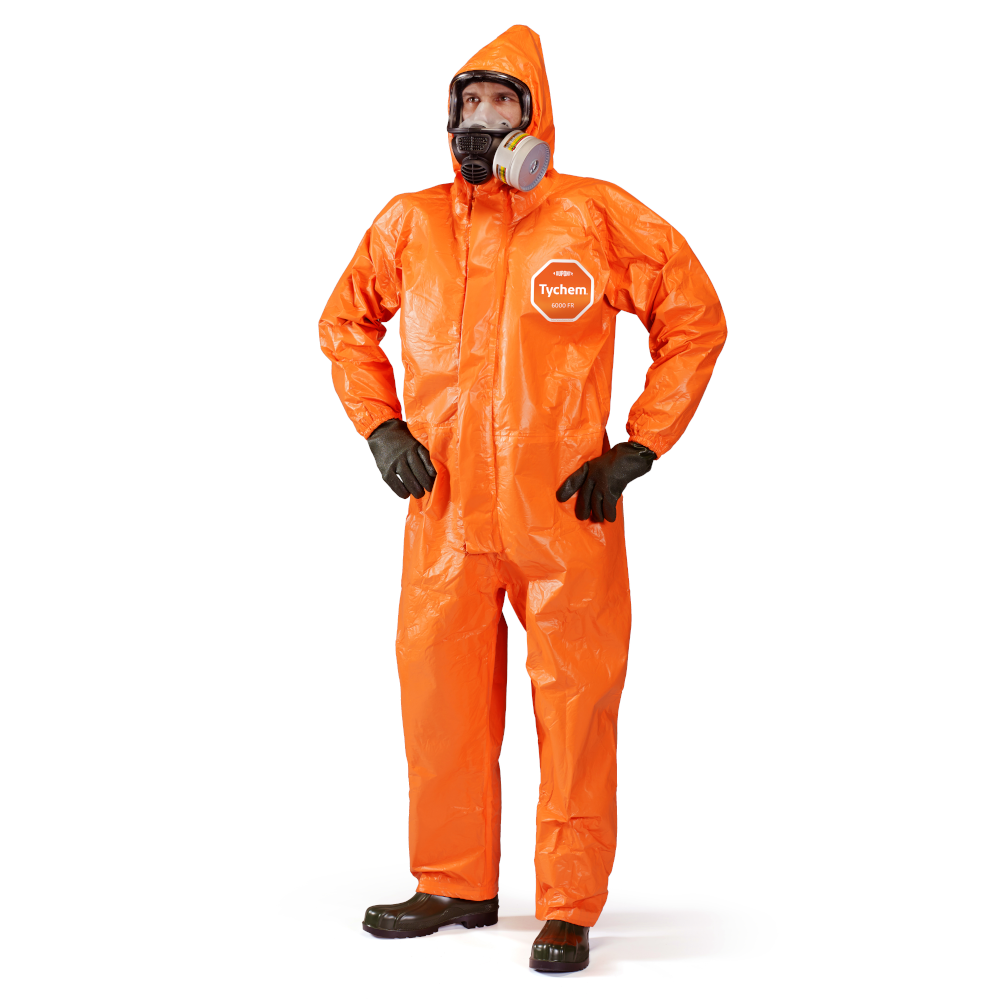

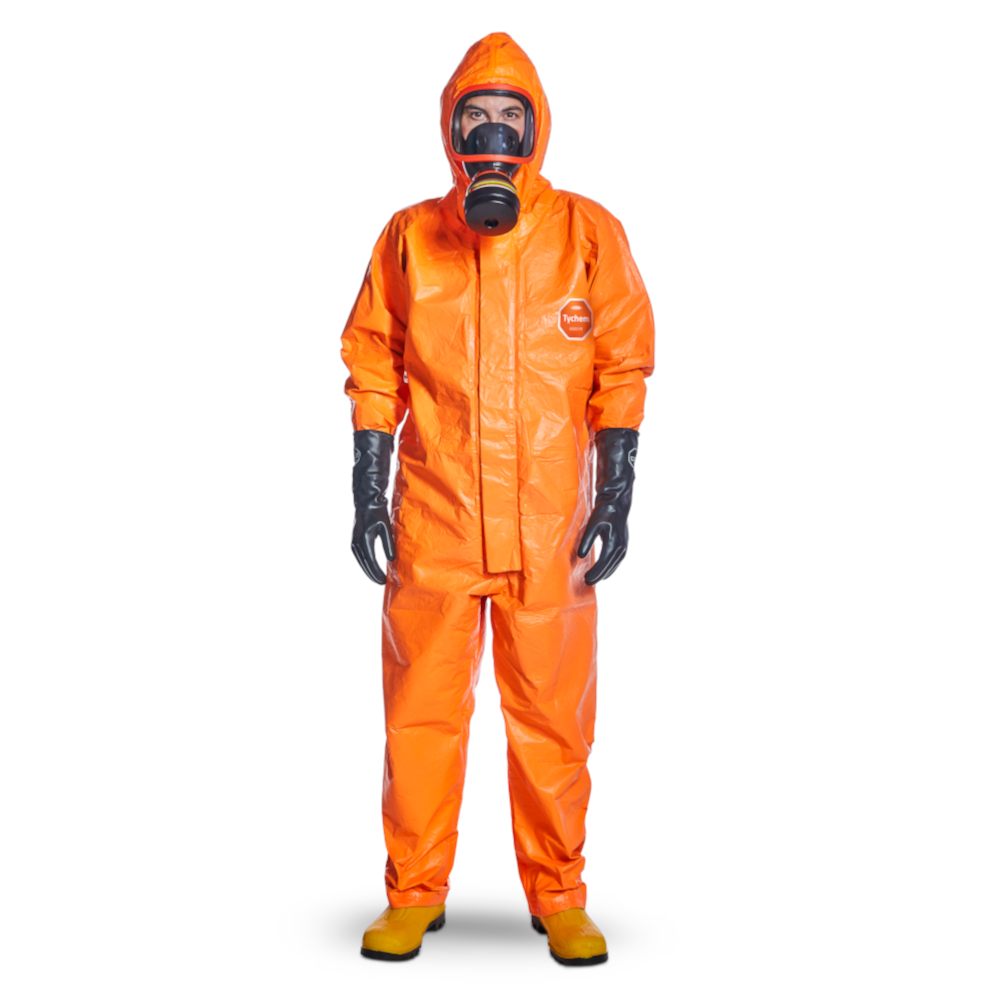

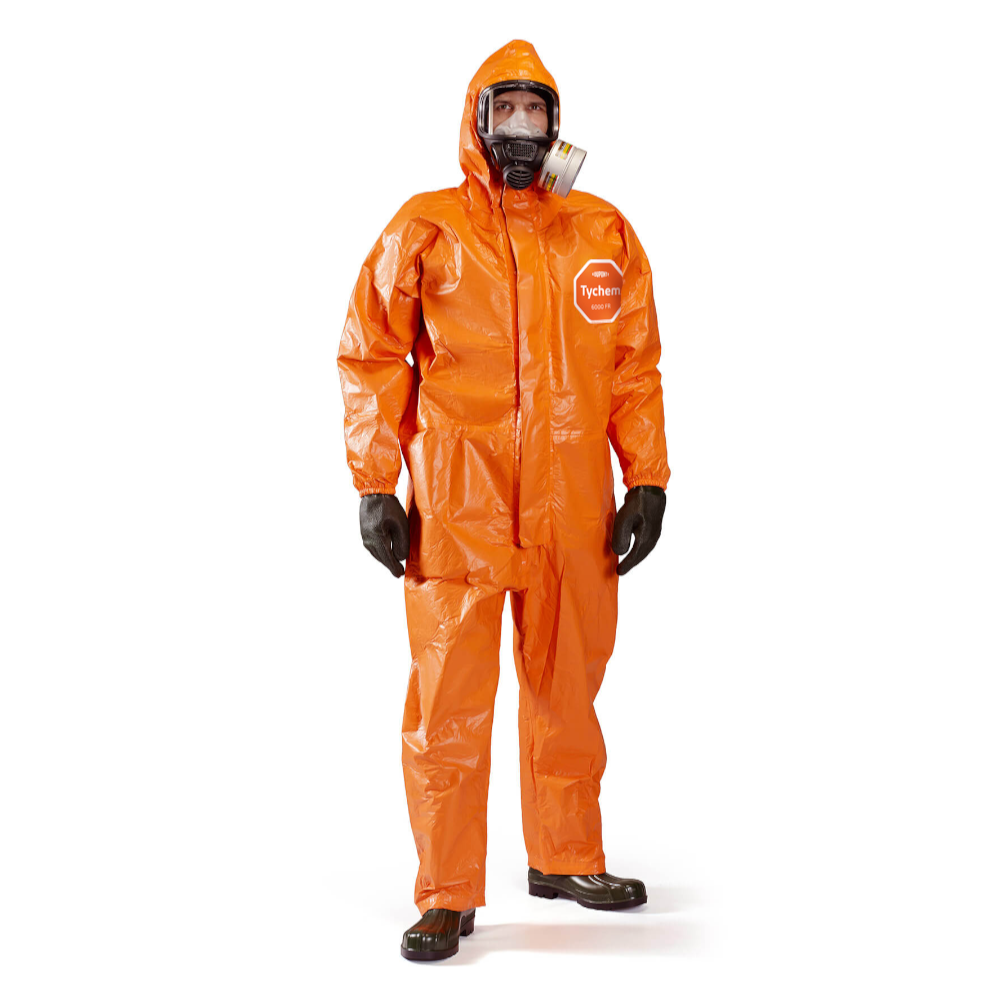

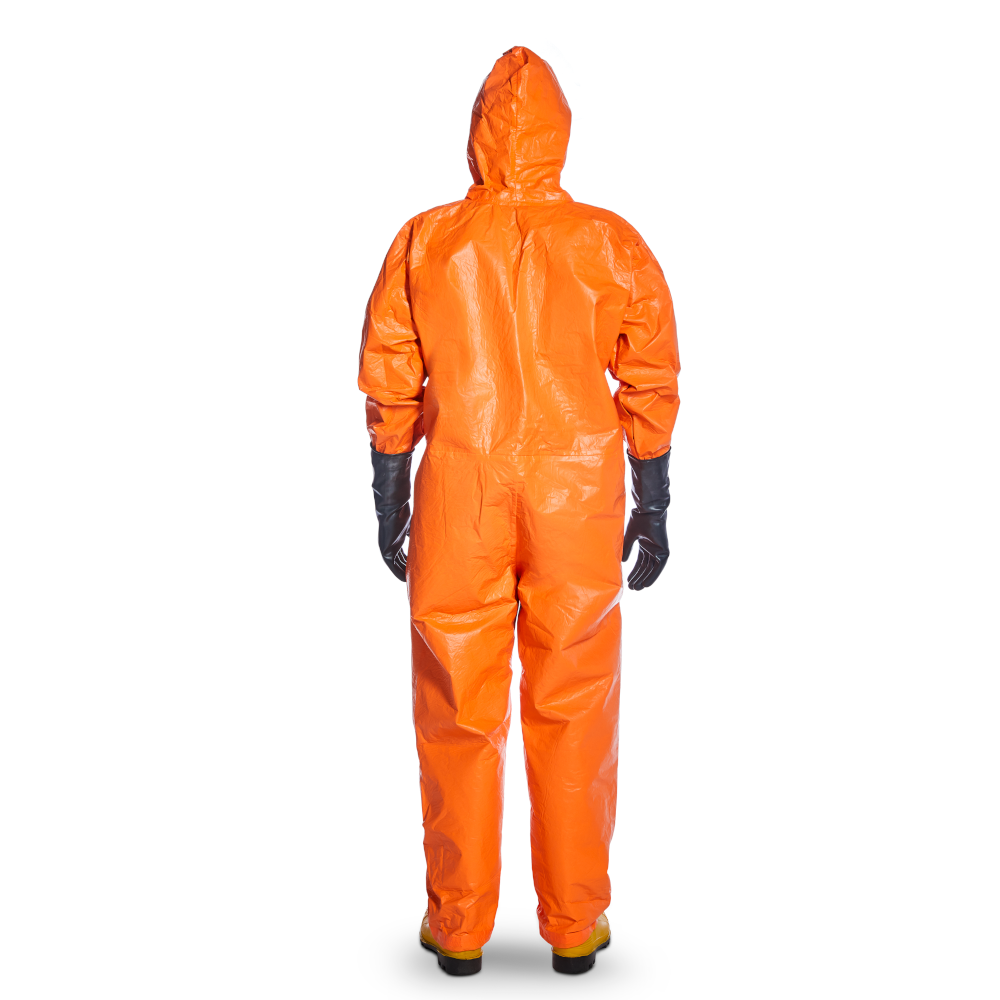

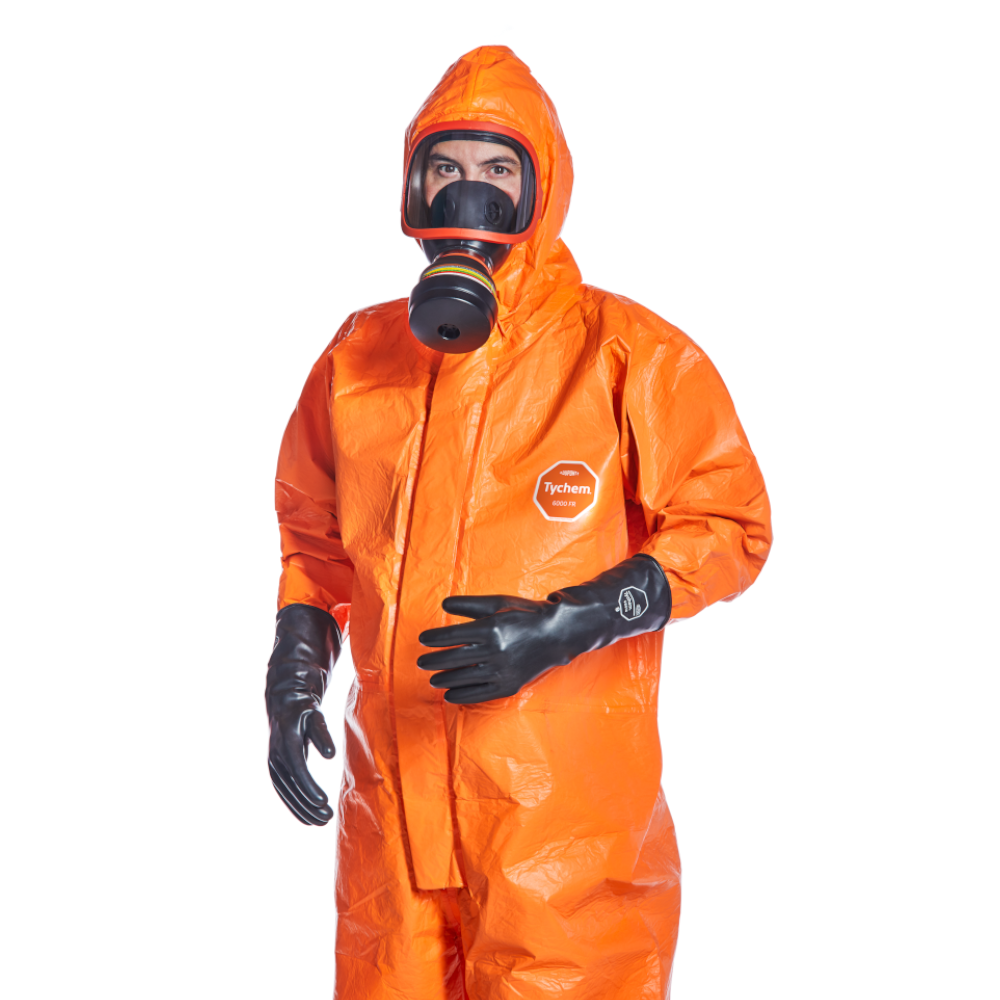

DuPont™ Tychem® ThermoPro. Hooded coverall with drawstrings. Stitched and over-taped seams. Elastication at wrists, open ankles. Double storm flap, zipper and hook and loop closure system. Orange.




Hover over image to zoom

CAT III

T3

T4

T6

EN 1149-5

EN 11612

EN 14116

EN 14126

Name Description
Full Part Number TP0198TORCE
Fabric/Materials TYCHEM® THERMOPRO
Design Hooded coverall
Seam Stitched and over-taped
Color Orange
Sizes SM, MD, LG, XL, 2X, 3X, 4X
Quantity/Box 2 per box

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® ThermoPro. Hooded coverall available in bright orange for high visbility, in sizes SM to 4X. Respirator-fit hood with drawstrings, elasticated wrists and hemmed open ankles. Long zipper extends to chin for complete coverage of neck area. Double flap, zipper, hook and loop closure system for higher protection. Sewn with DuPont™ Nomex® thread.
Tychem® ThermoPro garments provide dual protection from liquid-chemical splash and flash fire in a single layer. They combine the trusted chemical protection of Tychem® and thermal protection of Nomex® to help provide industrial workers and HazMat responders with permeation protection against a broad range of toxic industrial chemicals and to provide escape time from flash fires.
Typical applications include use in the oil and gas industry, by HazMat Teams in fire departments and industrial fire brigades, use during clandestine lab investigation, and use at industrial chemical processing plants and laboratories.

  • Chemical protective clothing, Category III, Type 3, 4 and 6
  • Inherently antistatic (EN 1149-5) - on inside
  • EN ISO 11612 (heat and flame), EN ISO 14116 (limited flame spread)
  • Stitched and over-taped seams with barrier tape for protection and strength
  • Protection against organic and inorganic chemicals. Tested for permeation against >240 chemicals
  • Tested on DuPont Thermo-Man thermal mannequin: up to 8% predicted body burn injury for an average of 98% chances of survival in case of a flash fire
  • Electric arc rating: ATPV = 15 cal/cm2 ••Single layer allowing a great scope of movement ••Can be reused if not contaminated or damaged

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >2000 cycles 6/6 1
Basis Weight DIN EN ISO 536 280 g/m2 N/A
Charge decay, inside 7 EN 1149-3 t<50<4s or S>0.2, Pass 14 N/A
Charge decay, outside 7 EN 1149-3 No decay, outside N/A
Colour. N/A (598) Orange N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >1000 cycles 1/6 1
Flex Cracking Resistance at -30°C EN ISO 7854 Method B >4000 cycles 6/6 1
Puncture Resistance EN 863 >10 N 2/6 1
Tensile Strength (MD) DIN EN ISO 13934-1 >250 N 4/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >250 N 4/6 1
Thickness (PPSH-249) DIN EN ISO 534 860 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >100 N 5/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >100 N 5/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

WARNING

PERMEATION DATA
