Tyvek / Tyvek® IsoClean®

IC 689 B WH WS

Tyvek® IsoClean®

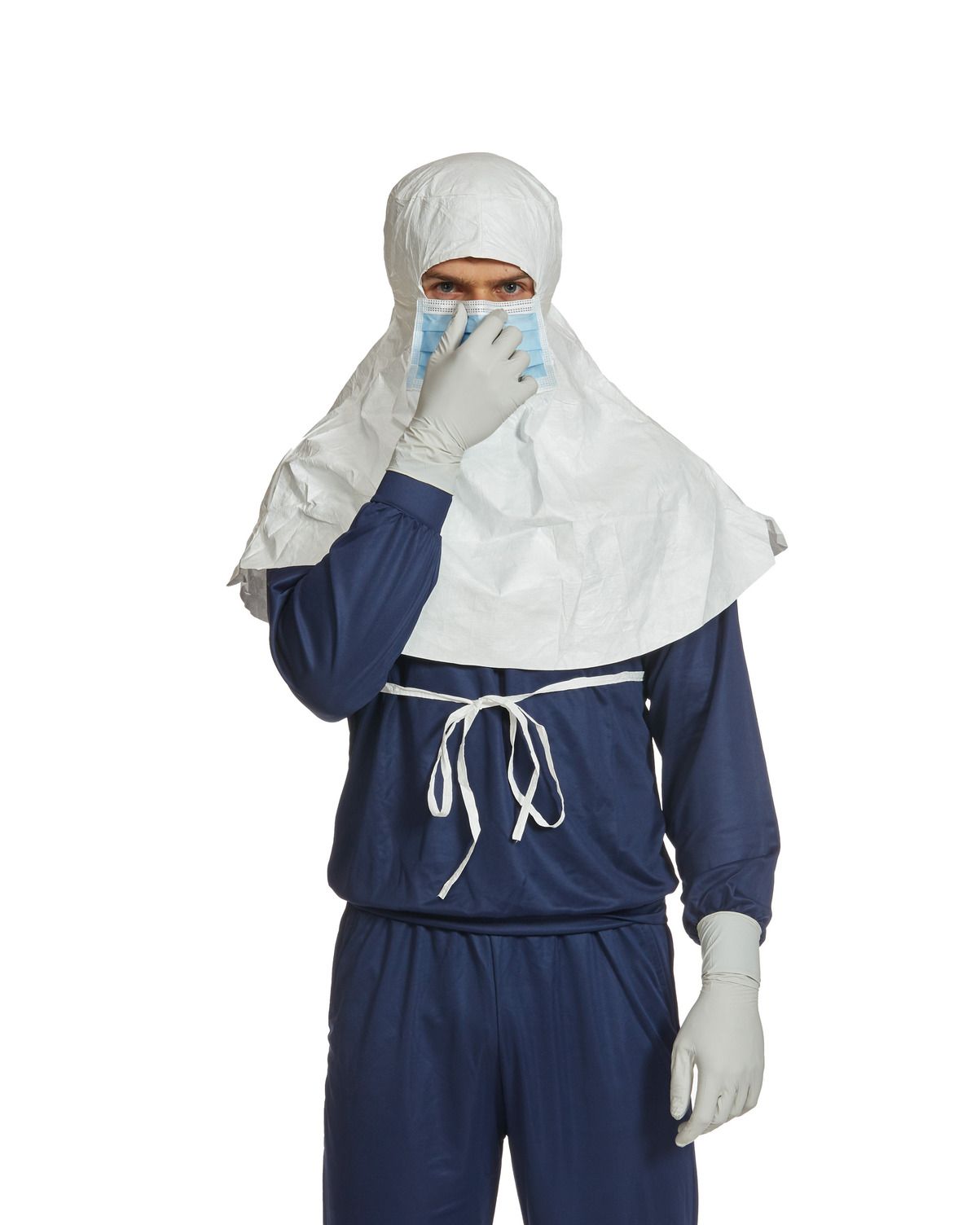

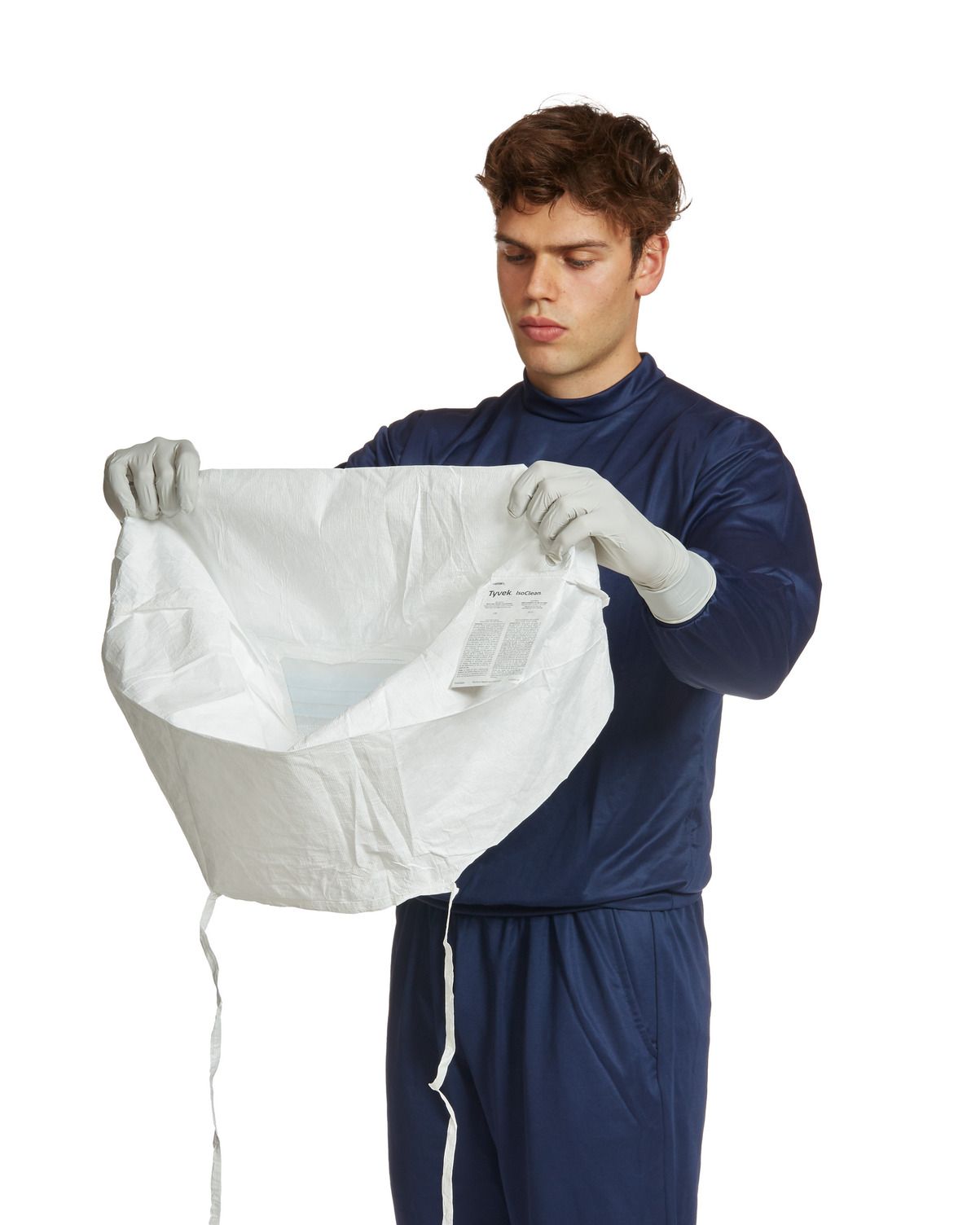

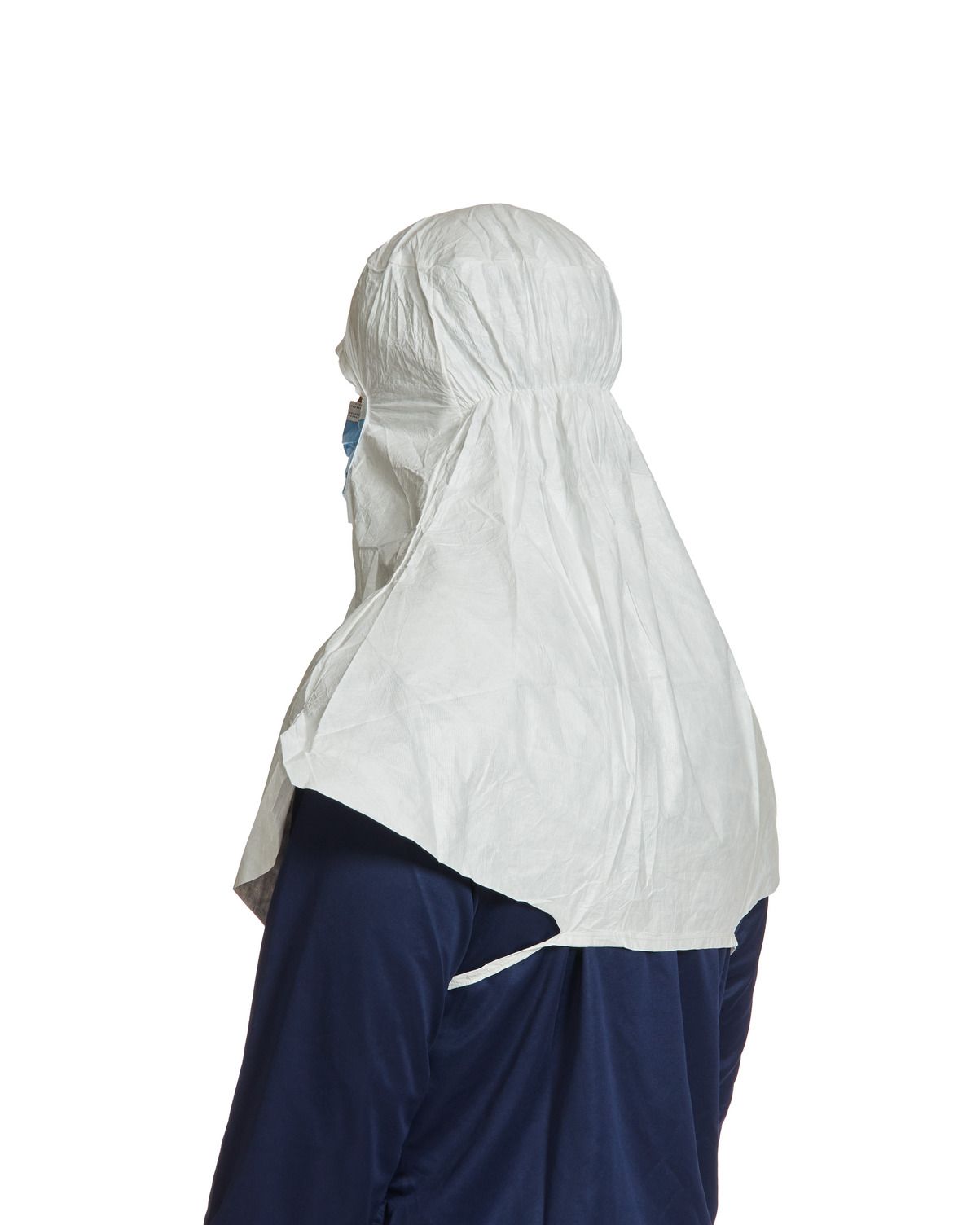

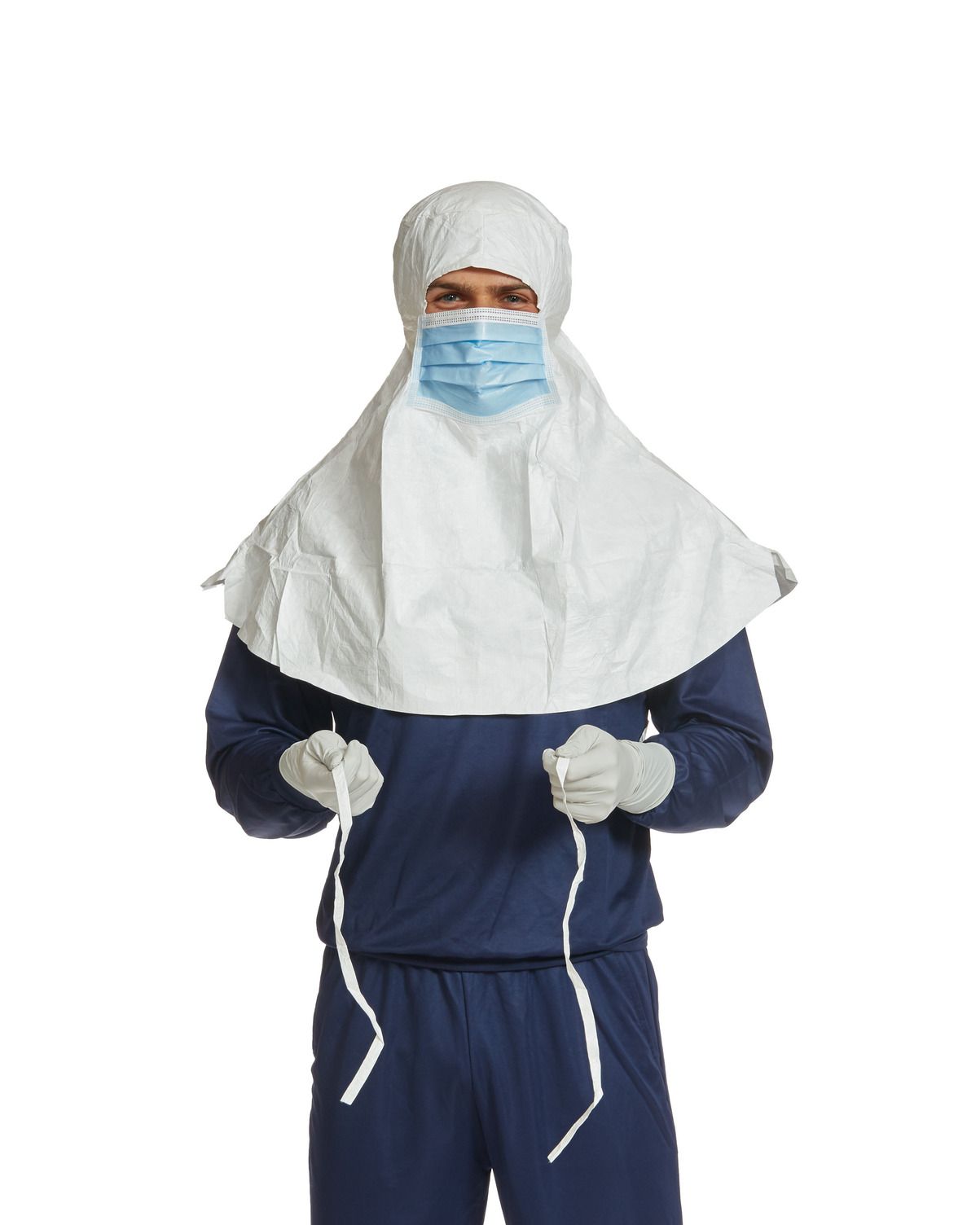

DuPont™ Tyvek® IsoClean® Hood with integrated mask, model IC 689 B WH WS. Gamma-sterilized. Aseptically folded. HOOD: Bound internal seams. Bound face opening. Ties for adjustable fit in the chest area. White. MASK: Pleated Polyethylene outer. 17.5 cm wide. Blue.




Hover over image to zoom

PB[6]

EN 14126

Option WS

ISO-11137

Name Description
Full Part Number IC689BWHWS
Fabric/Materials Tyvek® IsoClean® TS-WS
Design Hood with attached mask and ties
Seam Bound
Color Hood: white, mask: blue
Sizes 0
Quantity/Box 100 per box, individually double packed. 2 polyethylene liners. Cardboard box.

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® IsoClean® hood IC 689 B WH WS with attached mask and ties for adjustable fit in the chest area. Available in white and in one size. Gamma-sterilized and double bagged. Bound internal seams. Bound face opening for low particle shedding. Aseptically folded.
Tyvek® IsoClean® delivers an ideal balance of protection, durability and comfort. Made of high density polyethylene using a patented flash spinning process. Tyvek® IsoClean® provides an inherent barrier to particles, microorganisms and non-hazardous water-based light liquid splash. Tyvek® IsoClean® is also breathable and low linting.
Tyvek® IsoClean® WS accessories have been sterilized by gamma-irradiation. They are folded to aid aseptic donning and packaged in an ISO class 5 cleanroom. All DuPont™ Tyvek® IsoClean® sterile accessories (option code WS) are packed in a dual barrier packaging system, consisting of an inner and outer easy tear cleanroom bag. The packaging system serves as a key element for contamination risk reduction when transferring apparel into clean areas. The accessories are individually double packed.
Garments and accessories made of sterile Tyvek® IsoClean® are typically used in cleanrooms within the hospital pharmacies, biotech, pharmaceutical, medical device manufacturing, food processing, cosmetics industry as well as in other critical or controlled environments.

The attached mask is a blue sterile cleanroom mask made out of pleated polyethylene outer layer having a width of 17.5 cm. Please note that it is not a PPE (e.g. not an FFP1, 2 or 3) mask.

*Provided that the number and sizes of particles measured per m3 of air inside the cleanrooms stay within the limits defined by the GMP Annex 1, respectively the ISO 14644-1.

  • Certified according to Regulation (EU) 2016/425
  • Partial body chemical protective clothing, Category III, Type PB [6-B].
  • EN 14126 (barrier to infective agents)
  • Sterilized by gamma-irradiation to SAL of 10-6 (ISO 11137-1).
  • Suitable for use in GMP class A/B (ISO Class 5) clean rooms*

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >10 cycles 1/6 1
Basis Weight DIN EN ISO 536 41 g/m2 N/A
Charge Decay EN 1149-3 < 4s N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6/6 1
Puncture Resistance EN 863 >5 N 1/6 1
Resistance to water penetration DIN EN 20811 9 kPa N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >30 N 1/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >30 N 1/6 1
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

COMFORT

BIOLOGICAL BARRIER

PENETRATION AND REPELLENCY

GARMENT PERFORMANCE

WARNING

PERMEATION DATA

CLEANLINESS
